| Manufacturer Part Number: | 0022122054 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 15622 Pieces |
| Unit Price: | Quote by Email |

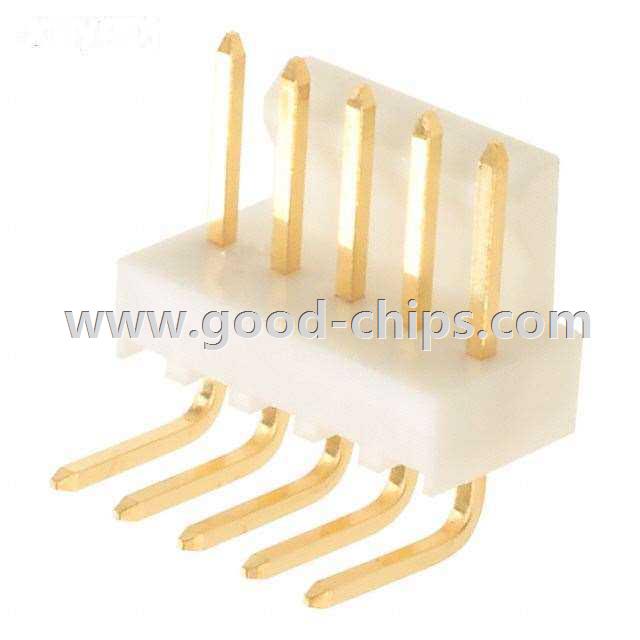

| Description: | 5 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0022122054 Datasheet |
| Internal Part Number | 898-0022122054 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | KK Low Power and Signal Interconnect Family | |
| RoHS Information | 0022122054 Cert of Compliance | |
| Featured Product | KK® Interconnect Solutions Power Connectors | |
| 3D Model | 22-12-2054.stp 0022122054 .pdf | |
| Online Catalog | KK® 7478 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | KK® 7478 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 5 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.264" (6.70mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 20µin (0.51µm) | |
| Color | White | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0022122054 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0022122054 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0022122054 is new and unused, you can buy 0022122054 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0022122054.
