| Manufacturer Part Number: | 0022552201 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 15321 Pieces |
| Unit Price: | Quote by Email |

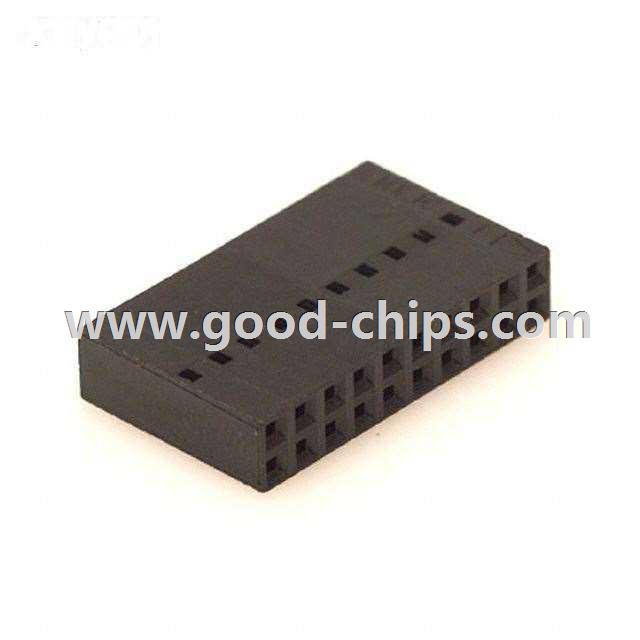

| Description: | 20 Position Rectangular Housing Connector Receptacle Black 0.100" (2.54mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0022552201 Datasheet |
| Internal Part Number | 898-0022552201 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SL Family Roadmap | |
| RoHS Information | 22-55-2201 Cert of Compliance | |
| Featured Product | SL™ Modular Connectors | |
| 3D Model | 22-55-2201.stp 0022552201 .pdf | |
| PCN Other | Various Series Supplier Change 23/Jul/2014 | |
| Online Catalog | SL™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex, LLC | |
| Series | SL™ 70450 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 20 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | - | |
| Color | Black | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0022552201 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0022552201 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0022552201 is new and unused, you can buy 0022552201 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0022552201.
