| Manufacturer Part Number: | 0026605020 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 19797 Pieces |
| Unit Price: | Quote by Email |

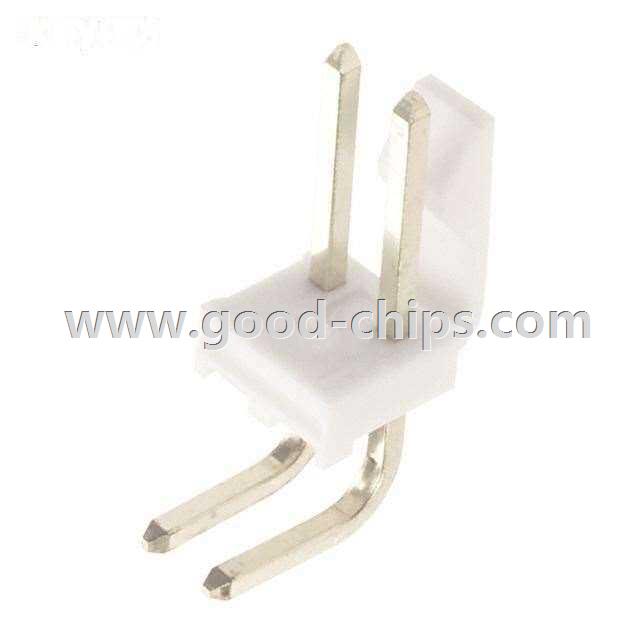

| Description: | 2 Positions Header, Unshrouded Connector 0.156" (3.96mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0026605020 Datasheet |
| Internal Part Number | 898-0026605020 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Tin Whisker Formation Change 27/Jul/2011 | |
| RoHS Information | 0026605020 Cert of Compliance | |
| Featured Product | KK® Interconnect Solutions Power Connectors | |
| 3D Model | 26-60-5020.stp | |
| PCN Design/Specification | Copper/Nickel Plating 01/Aug/2011 Reflow Matte Tin Plating 27/Jul/2011 | |
| PCN Other | KK 396 Cosmetic Deviation 07/Jul/2014 | |
| Online Catalog | KK® 41791 and 41792 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | KK® 41792 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 2 | |
| Number of Positions Loaded | All | |
| Pitch | 0.156" (3.96mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.450" (11.43mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 60µin (1.52µm) | |
| Color | Natural | |
| Standard Package | 8,800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0026605020 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0026605020 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0026605020 is new and unused, you can buy 0026605020 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0026605020.
