0039012021

0039012021
Manufacturer Part Number:0039012021
Manufacturer:
Product Category:Rectangular Connectors - Housings
Available Quantity:15049 Pieces
Unit Price:Quote by Email

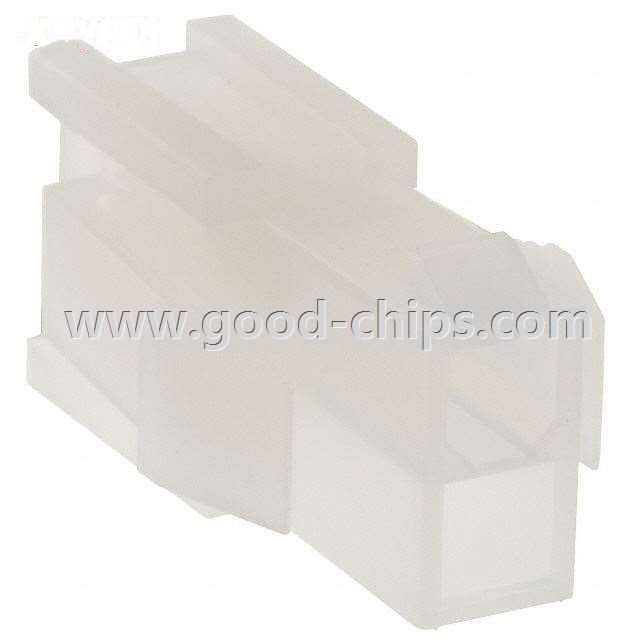

Description:2 Position Rectangular Housing Connector Plug Natural
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0039012021 Datasheet
0039012021´s Parameters
Internal Part Number898-0039012021
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Other Related DocumentsMini-Fit JR Color Variation
Moisturizing Nylon Connector Parts
Product Training ModulesPower Connectors
Video FileMini-Fit Jr
RoHS Information39012021 Cert of Compliance
Featured ProductPower Connectors
3D Model39-01-2021.stp
0039012021 .pdf
PCN Design/SpecificationV2 6/6 Nylon Resin Additional Supplier 05/Nov/2014
Online Catalog Mini-Fit® Jr™
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Housings
ManufacturerMolex, LLC
SeriesMini-Fit® Jr™ 5559
PackagingBulk
Part StatusActive
Connector TypePlug
Contact TypeMale Pin
Number of Positions2
Pitch-
Number of Rows2
Row Spacing0.165" (4.20mm)
Mounting TypePanel Mount, Snap-In
Contact TerminationCrimp
Fastening TypeLocking Ramp
ColorNatural
Features-
NoteContacts Not Provided
Standard Package 5,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part0039012021
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0039012021 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0039012021 is new and unused, you can buy 0039012021 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0039012021.
