Stocking distributor of Electronic Components

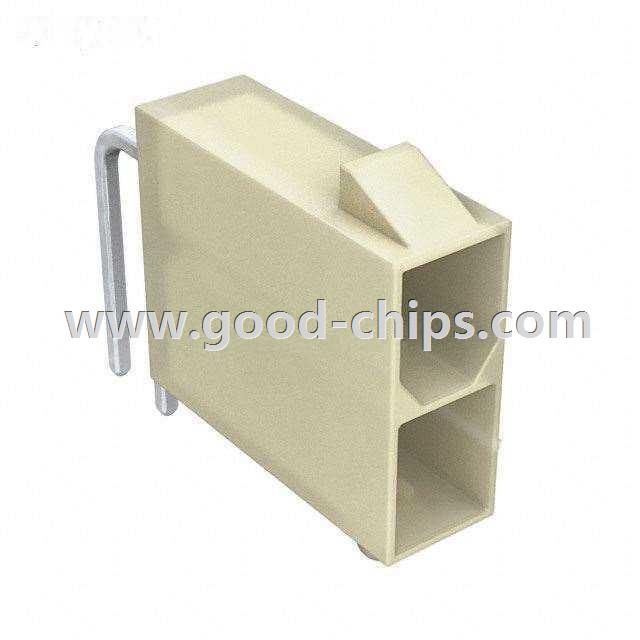

0039291027

0039291027
Manufacturer Part Number:0039291027
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:2 Positions Header, Shrouded Connector Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0039291027 Datasheet
0039291027´s Parameters
Internal Part Number898-0039291027
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information39291027 Cert of Compliance
Featured ProductPower Connectors
3D Model39-29-1027.stp
0039291027 .pdf
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesMini-Fit® Jr™ 5569
PackagingTray
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions2
Number of Positions LoadedAll
Pitch-
Number of Rows2
Row Spacing0.165" (4.20mm)
Contact Mating Length-
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeLocking Ramp
FeaturesBoard Lock
Contact FinishTin
Contact Finish Thickness100µin (2.54µm)
ColorNatural
Standard Package 600
Weight0.001 KG
ApplicationEmail for details
Replacement Part0039291027
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0039291027 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0039291027 is new and unused, you can buy 0039291027 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0039291027.
