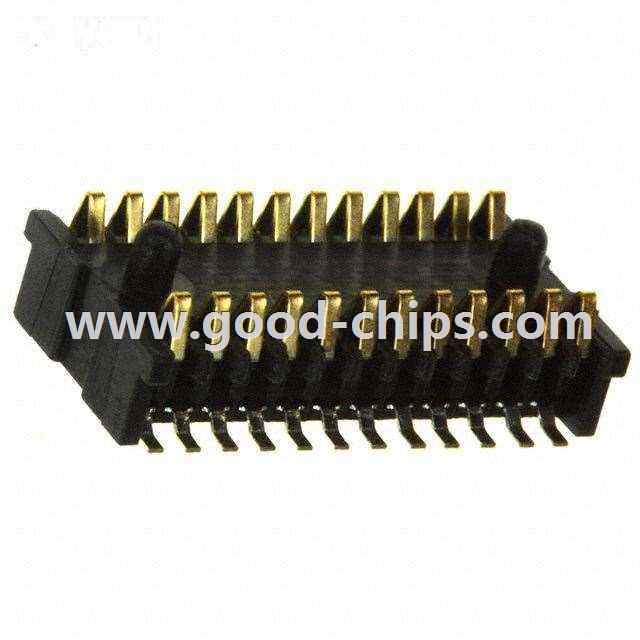

| Manufacturer Part Number: | 009158024030001 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24 Position Connector Stacking Compression Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 009158024030001 Datasheet |
| Internal Part Number | 898-009158024030001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | AVX Corporation | |
| Series | MOBO® 9158 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Stacking Compression | |
| Number of Positions | 24 | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Mated Stacking Heights | 2.8mm ~ 3.3mm | |
| Height Above Board | 0.106" (2.70mm) | |
| Standard Package | 1,100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 009158024030001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
009158024030001 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 009158024030001 is new and unused, you can buy 009158024030001 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 009158024030001.
