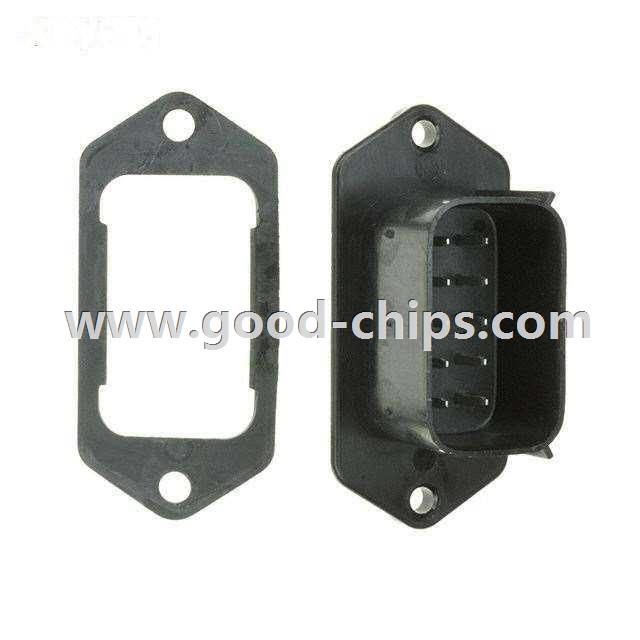

| Manufacturer Part Number: | 0194280014 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9840 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10 Positions Header, Shrouded Connector 0.230" (5.84mm) Panel Mount, Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0194280014 Datasheet |
| Internal Part Number | 898-0194280014 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | World Solar Challenge 2011 – Preview World Solar Challenge 2011 – Aerodynamics vs. Engineering | |
| RoHS Information | 19428-0014 Cert of Compliance | |
| Featured Product | MX150L™ Industrial Sealed Connector System | |
| 3D Model | 19428-0014.stp 0194280014 .pdf | |
| Online Catalog | MX150L™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | MX150L™ 19428 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 10 | |
| Number of Positions Loaded | All | |
| Pitch | 0.230" (5.84mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.236" (6.00mm) | |
| Contact Mating Length | - | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Guide | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | Black | |
| Standard Package | 240 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0194280014 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0194280014 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0194280014 is new and unused, you can buy 0194280014 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0194280014.
