| Manufacturer Part Number: | 0395443006 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 11224 Pieces |
| Unit Price: | Quote by Email |

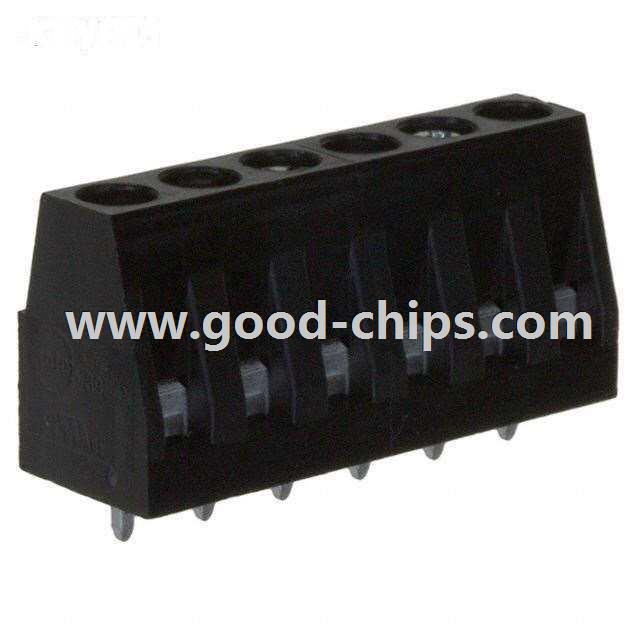

| Description: | 6 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0395443006 Datasheet |
| Internal Part Number | 898-0395443006 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 39544-3006 Cert of Compliance | |
| 3D Model | 39544-3006.stp | |
| Online Catalog | Eurostyle™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Molex, LLC | |
| Series | Eurostyle™ ESE 39544 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Levels | 1 | |
| Positions Per Level | 6 | |
| Pitch | 0.200" (5.08mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 15A | |
| Voltage | 300V | |
| Wire Gauge | 12-30 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Features | - | |
| Color | Black | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Material | Polyamide (PA66), Nylon 6/6 | |
| Contact Material - Plating | Brass - Tin Plated | |
| Clamp Material - Plating | Brass - Nickel Plated | |
| Screw Material - Plating | Steel - Zinc Plated | |
| Torque - Screw | 0.51 Nm (4.5 Lb-In) | |
| Screw Thread | M3 | |
| Standard Package | 480 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0395443006 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0395443006 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0395443006 is new and unused, you can buy 0395443006 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0395443006.
