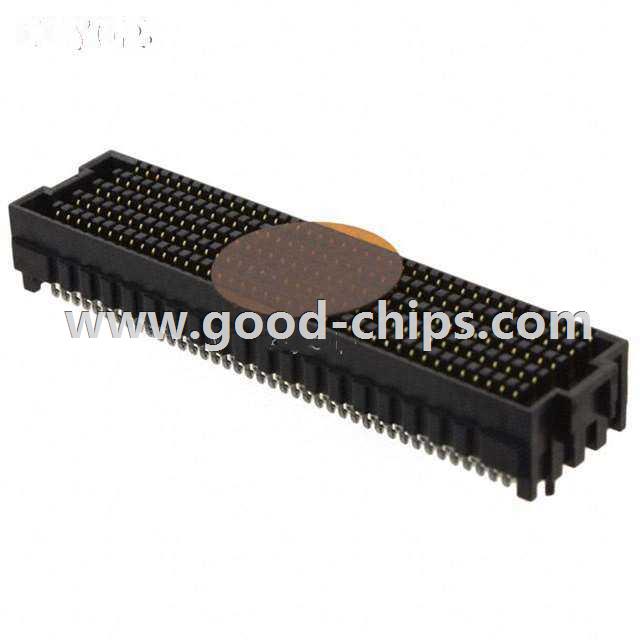

| Manufacturer Part Number: | 0459714515 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9430 Pieces |
| Unit Price: | Quote by Email |
| Description: | 400 Position Connector High Density Array, Female Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0459714515 Datasheet |
| Internal Part Number | 898-0459714515 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 45971-4515 Cert of Compliance | |
| 3D Model | 45971-4515.stp 45971-4515.igs 45971-4515.prt | |
| Online Catalog | SEARAY™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Molex, LLC | |
| Series | SEARAY™ 45971 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | High Density Array, Female | |
| Number of Positions | 400 | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 10 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Mated Stacking Heights | 10mm, 10.5mm, 11mm, 11.5mm, 12.5mm, 13mm, 15mm | |
| Height Above Board | 0.317" (8.05mm) | |
| Standard Package | 210 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0459714515 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0459714515 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0459714515 is new and unused, you can buy 0459714515 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0459714515.
