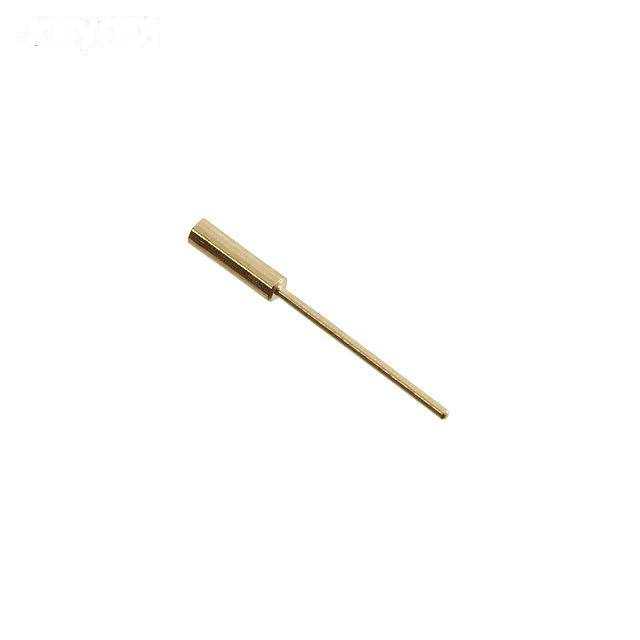

0464-1-15-15-10-27-04-0

0464-1-15-15-10-27-04-0
Manufacturer Part Number:0464-1-15-15-10-27-04-0
Manufacturer:
Product Category:Terminals - PC Pin Receptacles, Socket Connectors
Available Quantity:13305 Pieces
Unit Price:Quote by Email
Description:Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) Standard Tail Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0464-1-15-15-10-27-04-0 Datasheet
0464-1-15-15-10-27-04-0´s Parameters
Internal Part Number898-0464-1-15-15-10-27-04-0
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Mill-Max Manufacturing Corp.
CategoryConnectors, Interconnects
FamilyTerminals - PC Pin Receptacles, Socket Connectors
ManufacturerMill-Max Manufacturing Corp.
Series0464
PackagingBulk
Part StatusActive
Tail TypeStandard Tail
TerminationSolder
Length - Overall0.375" (9.53mm)
Accepts Pin Diameter0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Mounting Hole Diameter0.016" (0.41mm)
Pin Hole Diameter0.028" (0.71mm)
Flange Diameter0.037" (0.94mm)
Tail Diameter0.014" (0.36mm)
Socket Depth0.100" (2.54mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement Part0464-1-15-15-10-27-04-0
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0464-1-15-15-10-27-04-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 0464-1-15-15-10-27-04-0 is new and unused, you can buy 0464-1-15-15-10-27-04-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0464-1-15-15-10-27-04-0.
