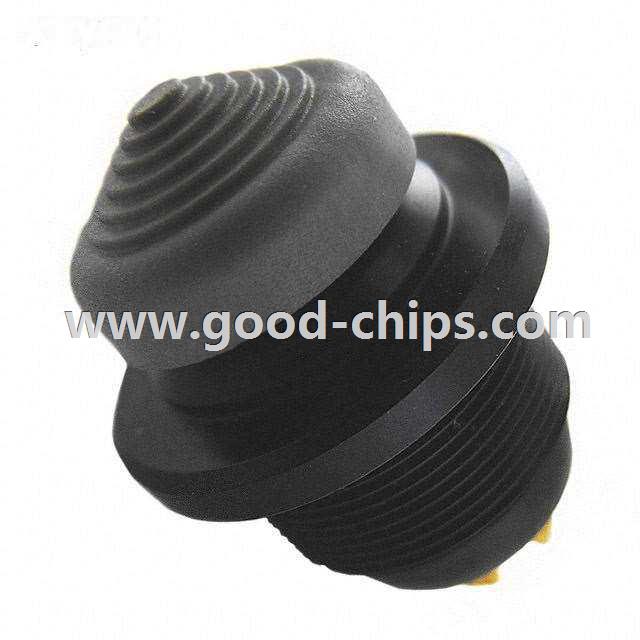

| Manufacturer Part Number: | 04J-AP-C01 |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 04J-AP-C01 Datasheet |
| Internal Part Number | 898-04J-AP-C01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Series 04J | |
| Online Catalog | 04J Series | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | Grayhill Inc. | |
| Series | 04J | |
| Part Status | Active | |
| Type | Navigation Switch, 2 - Axis | |
| Actuator Type | Conical | |
| Switch Function | 4-Way Directional, Center Select | |
| Functions, Extra | - | |
| Output | Digital (Mechanical Switch) | |
| Voltage - Supply | - | |
| Current Rating | 2A (AC/DC) | |
| Voltage Rating - AC | 115V | |
| Voltage Rating - DC | 28V | |
| Contact Material | Nickel | |
| Contact Finish | Gold | |
| Mounting Type | Panel Mount | |
| Termination Style | PC Pin | |
| Operating Temperature | -55°C ~ 85°C | |
| Panel Cutout Dimensions | - | |
| Ingress Protection | IP68 - Dust Tight, Waterproof | |
| Features | - | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Force | 454gf | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 04J-AP-C01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
04J-AP-C01 is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 04J-AP-C01 is new and unused, you can buy 04J-AP-C01 Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 04J-AP-C01.
