Manufacturer Part Number: | 09140023101 |
---|---|
Manufacturer: | Harting |
Product Category: | Heavy Duty Connectors - Accessories |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |

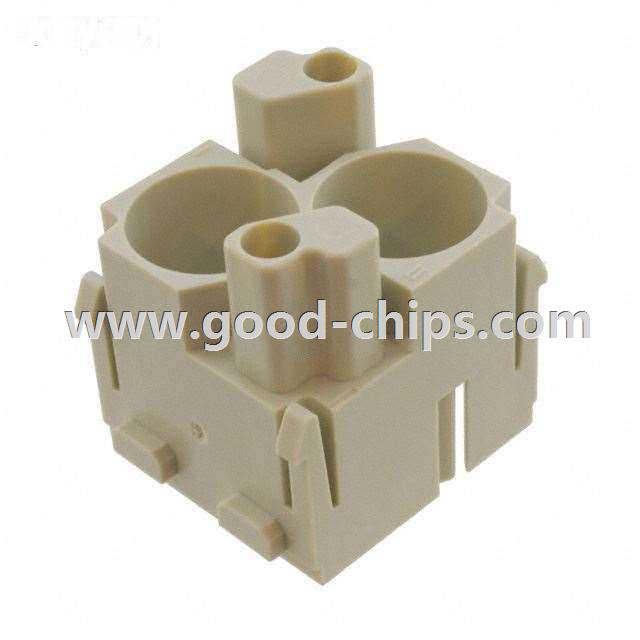

Description: | HAN-QUINTAX MODULE, FEMALE |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 09140023101 Datasheet |
Internal Part Number | 898-09140023101 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 09140023101.jt 09140023101.stp | |
Online Catalog | Han® Series | |
Category | Connectors, Interconnects | |
Family | Heavy Duty Connectors - Accessories | |
Manufacturer | Harting | |
Series | Han-Quintax® | |
Part Status | Active | |
Accessory Type | Insert Frame | |
For Use With/Related Products | Han-Quintax® Modules | |
Specifications | Female | |
Ratings | - | |
Standard Package | 2 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 09140023101 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
09140023101 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09140023101 is new and unused, you can buy 09140023101 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09140023101.
