Manufacturer Part Number: | 09185165904 |
---|---|
Manufacturer: | Harting |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9110 Pieces |
Unit Price: | Quote by Email |

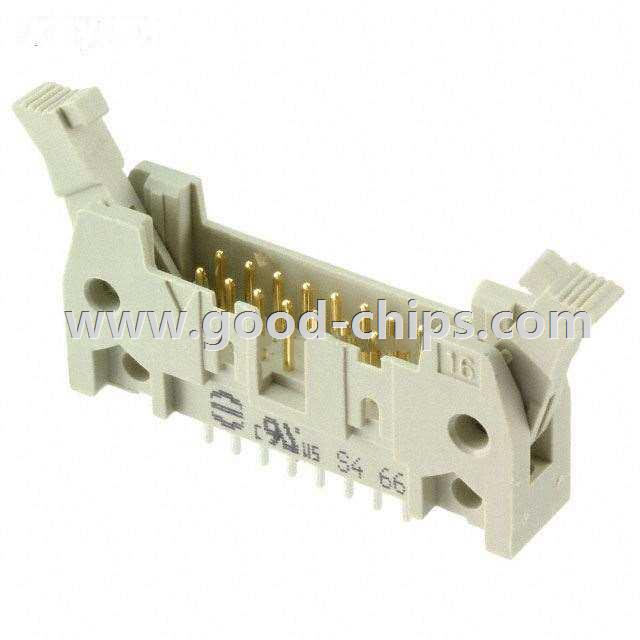

Description: | 16 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 09185165904 Datasheet |
Internal Part Number | 898-09185165904 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | SEK Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Harting | |
Series | SEK | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 16 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Contact Mating Length | 0.228" (5.80mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | Latch Lock/Eject Hooks, Long | |
Features | - | |
Contact Finish | - | |
Contact Finish Thickness | - | |
Color | Gray | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 09185165904 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
09185165904 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09185165904 is new and unused, you can buy 09185165904 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09185165904.
