Manufacturer Part Number: | 09185407803 |
---|---|
Manufacturer: | Harting |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9210 Pieces |
Unit Price: | Quote by Email |

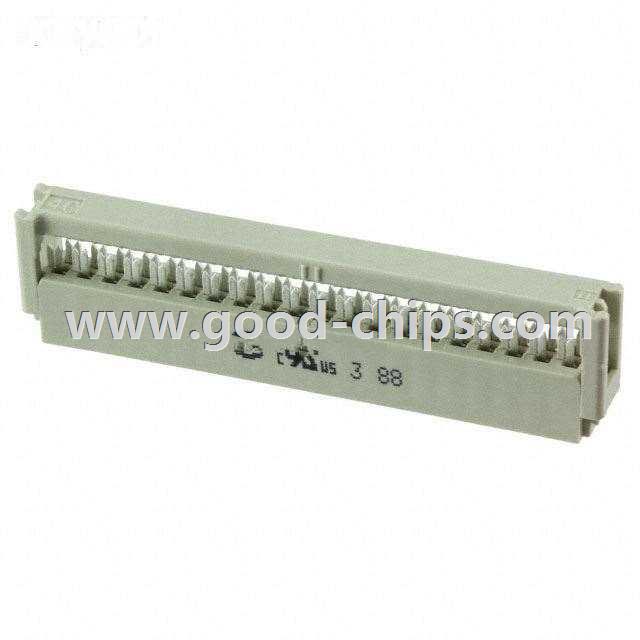

Description: | 40 Position Rectangular Receptacle Connector IDC 26-28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 09185407803 Datasheet |
Internal Part Number | 898-09185407803 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 0918540x803.wrl 0918540x803.igs 0918540x803.stp | |
Online Catalog | SEK Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | Harting | |
Series | SEK | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 40 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | 26-28 AWG | |
Features | Feed Through, Polarizing Key | |
Contact Finish | - | |
Contact Finish Thickness | - | |
Color | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 09185407803 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
09185407803 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09185407803 is new and unused, you can buy 09185407803 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09185407803.
