| Manufacturer Part Number: | 09322403001 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Inserts, Modules |
| Available Quantity: | 9018 Pieces |
| Unit Price: | Quote by Email |

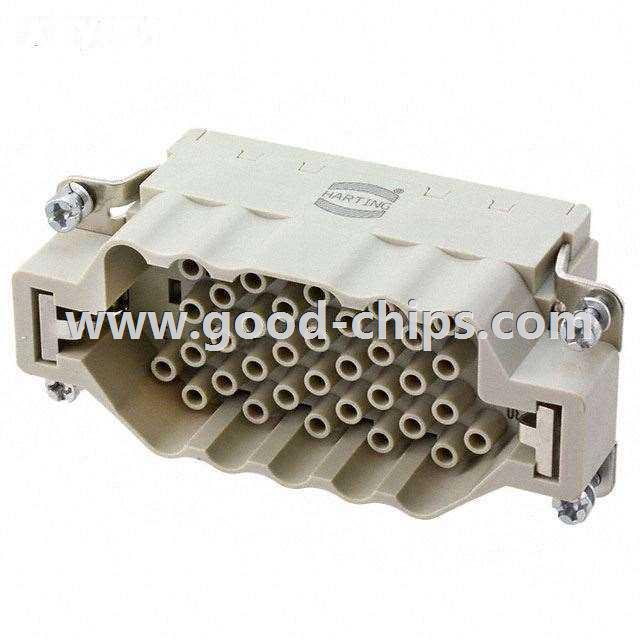

| Description: | Male Insert without Contacts Gray 40+Ground Position Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09322403001 Datasheet |
| Internal Part Number | 898-09322403001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Han® E, EE, ES, ES Press, EEE and ESS Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Inserts, Modules | |
| Manufacturer | Harting | |
| Series | Han® EEE HMC | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Insert without Contacts | |
| Gender | Male | |
| Number of Positions | 40+Ground | |
| Size | 16B | |
| Termination Style | Crimp | |
| Voltage Rating | 500V | |
| Current Rating | 16A | |
| Contact Type | Han E® HMC | |
| Operating Temperature | -40°C ~ 125°C | |
| Color | Gray | |
| Housing Material | Polycarbonate (PC) | |
| Contact Material | - | |
| Contact Finish | - | |
| Material Flammability Rating | UL94 V-0 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09322403001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09322403001 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09322403001 is new and unused, you can buy 09322403001 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09322403001.
