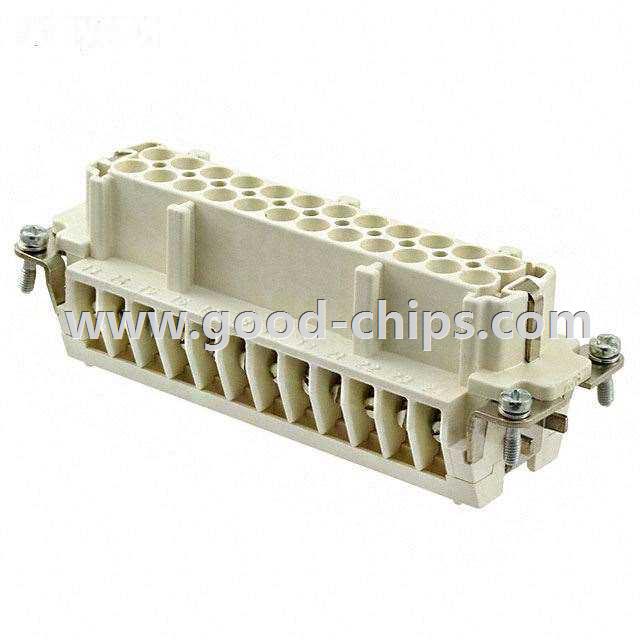

| Manufacturer Part Number: | 09338242701 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Inserts, Modules |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | Female Insert Gray 24+Ground Position Screw |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09338242701 Datasheet |
| Internal Part Number | 898-09338242701 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Han® High Temp Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Inserts, Modules | |
| Manufacturer | Harting | |
| Series | Han® High Temp | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Insert | |
| Gender | Female | |
| Number of Positions | 24+Ground | |
| Size | 24B | |
| Termination Style | Screw | |
| Voltage Rating | 400V | |
| Current Rating | 16A | |
| Contact Type | - | |
| Operating Temperature | -40°C ~ 200°C | |
| Color | Gray | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Contact Material | Copper Alloy | |
| Contact Finish | - | |
| Material Flammability Rating | UL94 V-0 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09338242701 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09338242701 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09338242701 is new and unused, you can buy 09338242701 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09338242701.
