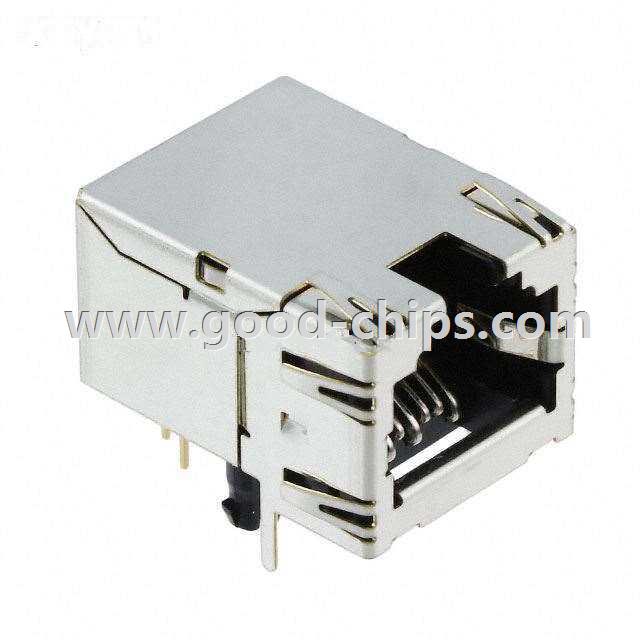

| Manufacturer Part Number: | 09350022101 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Modular Connectors - Jacks |
| Available Quantity: | 9096 Pieces |
| Unit Price: | Quote by Email |
| Description: | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09350022101 Datasheet |
| Internal Part Number | 898-09350022101 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09350022101.wrl 09350022101.igs 09350022101.stp | |
| Online Catalog | Han® PushPull Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks | |
| Manufacturer | Harting | |
| Series | Han® PushPull | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Shielding | Shielded, EMI Finger | |
| Ratings | Cat6 | |
| Features | Board Lock | |
| LED Color | Does Not Contain LED | |
| Ingress Protection | IP20 | |
| Tab Direction | Up | |
| Contact Material | - | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Housing Material | - | |
| Operating Temperature | -40°C ~ 70°C | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09350022101 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09350022101 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09350022101 is new and unused, you can buy 09350022101 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09350022101.
