| Manufacturer Part Number: | 09564627812 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9154 Pieces |
| Unit Price: | Quote by Email |

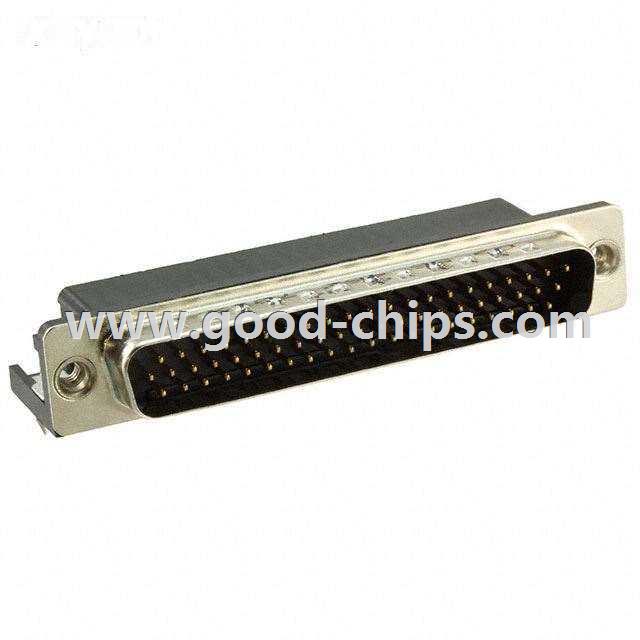

| Description: | 62 Position D-Sub, High Density Plug, Male Pins Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09564627812 Datasheet |
| Internal Part Number | 898-09564627812 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 0956462x812.jt 0956462x812.stp | |
| Online Catalog | D-Sub | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 62 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 4 (DC, C) High Density | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Board Side (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Grounding Indents | |
| Shell Material, Finish | Steel | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Color | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09564627812 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09564627812 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09564627812 is new and unused, you can buy 09564627812 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09564627812.
