Manufacturer Part Number: | 09664527611 |
---|---|
Manufacturer: | Harting |
Product Category: | D-Sub Connectors |
Available Quantity: | 9073 Pieces |
Unit Price: | Quote by Email |

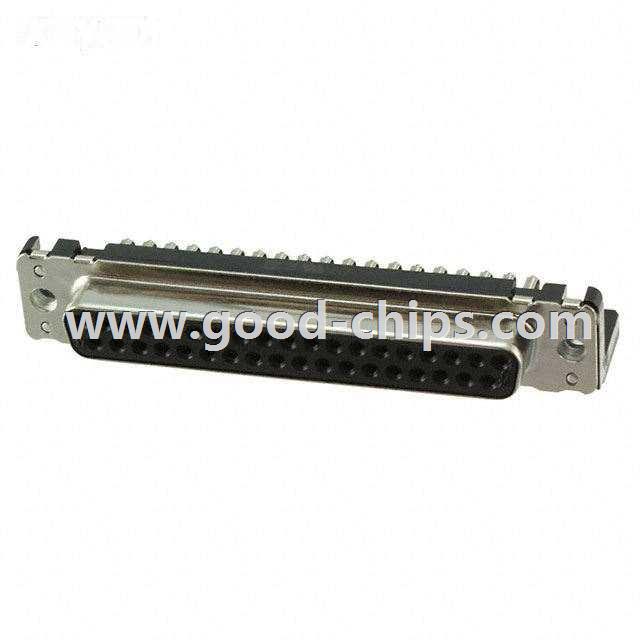

Description: | 37 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 09664527611 Datasheet |
Internal Part Number | 898-09664527611 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | D-Sub | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Harting | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 37 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 4 (DC, C) | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Housing/Shell (M3) | |
Termination | Solder | |
Features | Board Lock | |
Shell Material, Finish | Steel | |
Contact Finish | - | |
Contact Finish Thickness | - | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | - | |
Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
Color | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 09664527611 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
09664527611 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09664527611 is new and unused, you can buy 09664527611 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09664527611.
