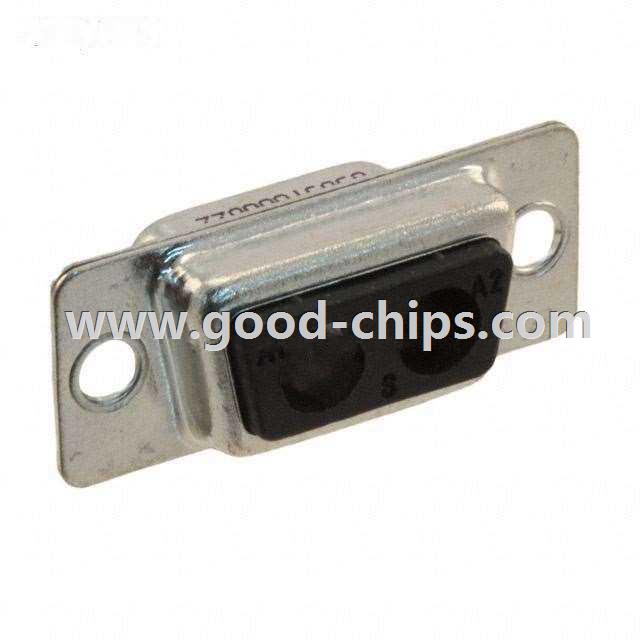

| Manufacturer Part Number: | 09691000022 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub, D-Shaped Connectors - Housings |
| Available Quantity: | 9072 Pieces |
| Unit Price: | Quote by Email |
| Description: | Receptacle for Female Contacts Housing D-Sub, Combo Connector 2 (Coax or Power) Position |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09691000022 Datasheet |
| Internal Part Number | 898-09691000022 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | D-Sub Housings | |
| Category | Connectors, Interconnects | |
| Family | D-Sub, D-Shaped Connectors - Housings | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Receptacle for Female Contacts | |
| Number of Positions | 2 (Coax or Power) | |
| Number of Rows | 1 | |
| Shell Size, Connector Layout | 1 (DE, E) - 2V2, 2W2C | |
| Contact Type | Coax or Power | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Features | - | |
| Shell Material, Finish | Steel, Tin Plated | |
| Shell Finish Thickness | - | |
| Note | Contacts Not Provided | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Mating Cycles | - | |
| Dielectric Material | Polyester, Glass Filled | |
| Color | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09691000022 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09691000022 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09691000022 is new and unused, you can buy 09691000022 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09691000022.
