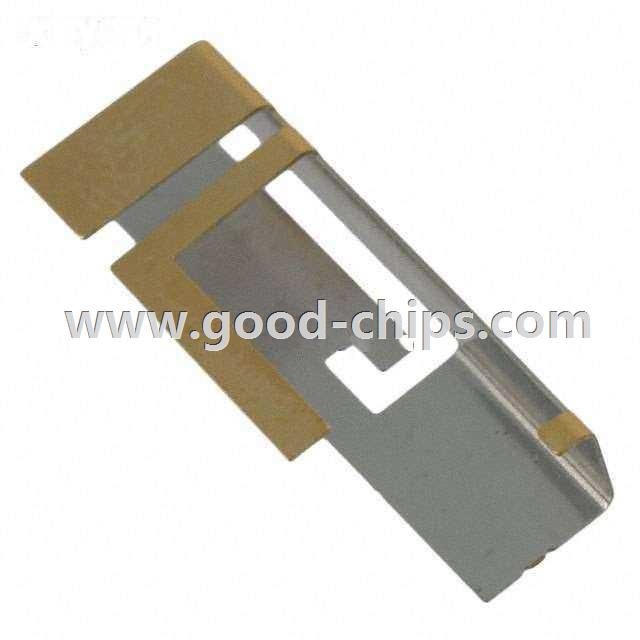

| Manufacturer Part Number: | 1000146 |
|---|---|
| Manufacturer: | Ethertronics Inc. |
| Product Category: | RF Antennas |
| Available Quantity: | 19810 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz WLAN Stamped Metal RF Antenna 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1000146 Datasheet |
| Internal Part Number | 898-1000146 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Ethertronics - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Ethertronics Inc. | |
| Series | Prestta™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | |
| Frequency Range | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | |
| Antenna Type | Stamped Metal | |
| Number of Bands | 4 | |
| VSWR | 1.6, 1.8, 1.5, 1.3 | |
| Return Loss | - | |
| Gain | 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.169" (4.30mm) | |
| Applications | WLAN | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1000146 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1000146 is in stock for immediate shipping now. We are the distributor of Ethertronics Inc. all series components. The condition of 1000146 is new and unused, you can buy 1000146 Ethertronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1000146.
