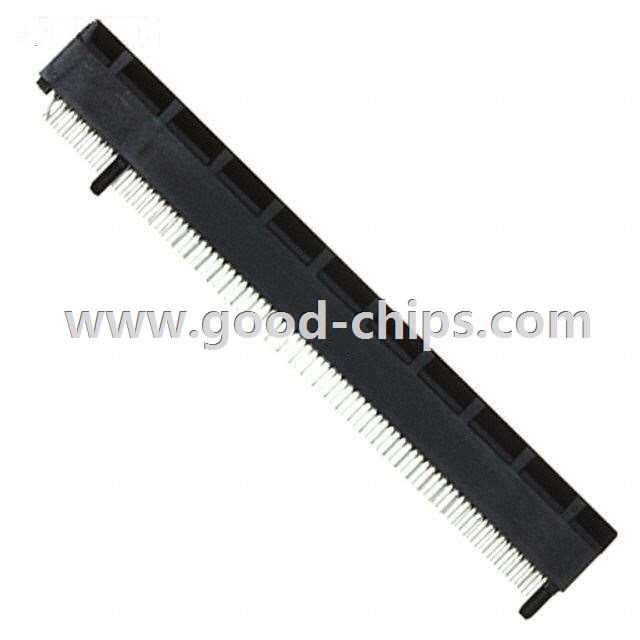

| Manufacturer Part Number: | 10018783-10103TLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN PCI EXPRESS 164POS VERT PCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10018783-10103TLF Datasheet |
| Internal Part Number | 898-10018783-10103TLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | GXT Plating 08/Aug/2013 GXT Plating Revision 19/Nov/2013 Edge Card Drawing 12/Dec/2014 10018783 Series Drawing Specification 06/Apr/2016 | |
| PCN Assembly/Origin | PCI Devices 10/Mar/2011 | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | HPCE™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Card Type | PCI Express™ | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 164 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.039" (1.00mm) | |
| Features | Board Guide, Locking Ramp | |
| Mounting Type | Through Hole | |
| Termination | Solder, Staggered | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Contact Type | Cantilever | |
| Color | Black | |
| Flange Feature | - | |
| Operating Temperature | -55°C ~ 85°C | |
| Material - Insulation | Polyamide (PA), Nylon, Glass Filled | |
| Read Out | Dual | |
| Standard Package | 900 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10018783-10103TLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10018783-10103TLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10018783-10103TLF is new and unused, you can buy 10018783-10103TLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10018783-10103TLF.
