Manufacturer Part Number: | 1003-002-01100 |
---|---|
Manufacturer: | CNC Tech |
Product Category: | USB, DVI, HDMI Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

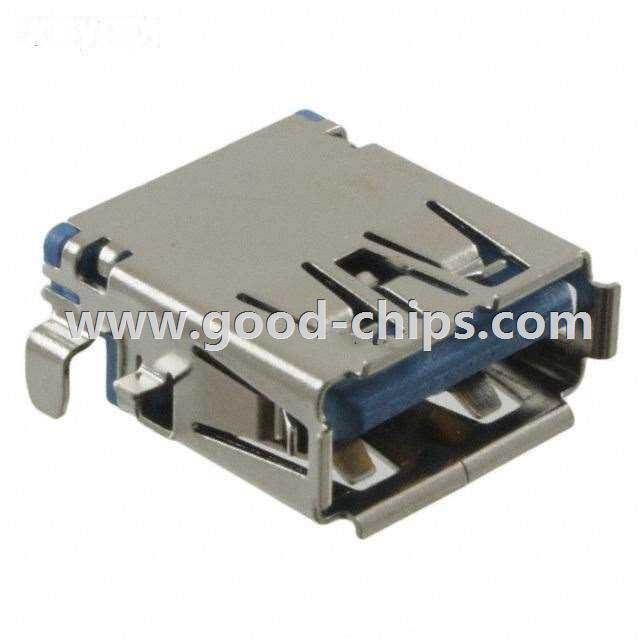

Description: | USB - A USB 3.0, Super Speed Receptacle Connector 9 Position Surface Mount, Right Angle, Horizontal |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1003-002-01100 Datasheet |
Internal Part Number | 898-1003-002-01100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 1003-002-01100.pdf | |
PCN Design/Specification | 1003-002-01100 Dimensions 15/Aug/2016 | |
Online Catalog | CNC Tech - USB | |
Category | Connectors, Interconnects | |
Family | USB, DVI, HDMI Connectors | |
Manufacturer | CNC Tech | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | USB - A | |
Number of Contacts | 9 | |
Gender | Receptacle | |
Specifications | USB 3.0, Super Speed | |
Mounting Type | Surface Mount, Right Angle, Horizontal | |
Features | Board Lock, Solder Retention | |
Ingress Protection | - | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1003-002-01100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1003-002-01100 is in stock for immediate shipping now. We are the distributor of CNC Tech all series components. The condition of 1003-002-01100 is new and unused, you can buy 1003-002-01100 CNC Tech with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1003-002-01100.
