| Manufacturer Part Number: | 10120045-201LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 9720 Pieces |
| Unit Price: | Quote by Email |

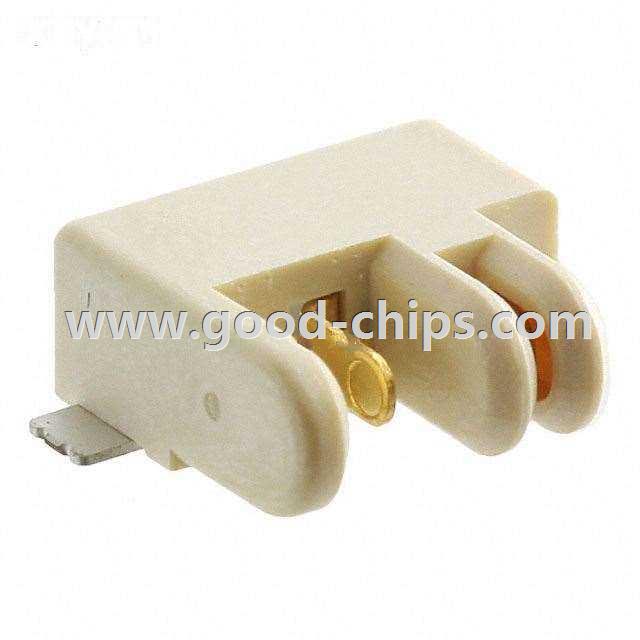

| Description: | SSL Connector 2 Position Blade and Receptacle, Hermaphroditic Board to Board 0.118" (3.00mm) Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10120045-201LF Datasheet |
| Internal Part Number | 898-10120045-201LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Design/Specification | 10120045-201LF, 10120045-401LF Latching Feature 24/Jun/2015 | |
| Online Catalog | RotaConnect™ Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | RotaConnect™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Board | |
| Connector Type | Blade and Receptacle, Hermaphroditic | |
| Number of Positions | 2 | |
| Mounting Type | Board Edge, Surface Mount, Right Angle | |
| Termination | Solder | |
| Pitch | 0.118" (3.00mm) | |
| Fastening Type | - | |
| Features | Board Guide | |
| Housing Color | Natural | |
| Wire Gauge | - | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold, GXT™ | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Operating Temperature | -40°C ~ 125°C | |
| Voltage Rating | 125V | |
| Current Rating | 5A | |
| Ingress Protection | - | |
| Mating Cycles | 20 | |
| Standard Package | 710 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10120045-201LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10120045-201LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10120045-201LF is new and unused, you can buy 10120045-201LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10120045-201LF.
