112604

112604
Manufacturer Part Number:112604
Manufacturer:
Product Category:Coaxial Connectors (RF)
Available Quantity:9013 Pieces
Unit Price:Quote by Email

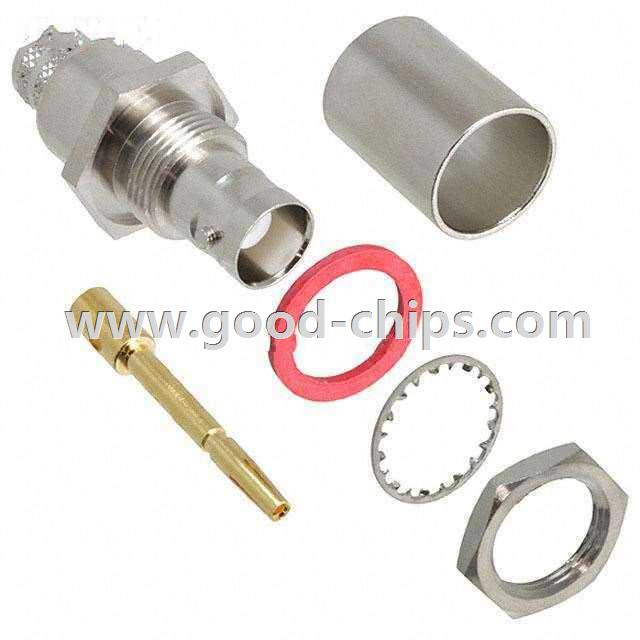

Description:BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 112604 Datasheet
112604´s Parameters
Internal Part Number898-112604
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesBNC Overview
Video FileHow to Crimp a BNC 3 Piece Crimp Coaxial Connector on RG-59 Cable
Online Catalog BNC Connectors
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF)
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationCrimp
Shield TerminationCrimp
Impedance50 Ohm
Mounting TypePanel Mount, Bulkhead - Front Side Nut
Cable GroupBelden 8214, 9913, 9914, LMR-400
Fastening TypeBayonet Lock
Frequency - Max4GHz
Features-
Housing ColorSilver
Ingress Protection-
Body MaterialBrass
Body FinishNickel
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Voltage Rating500V
Operating Temperature-
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part112604
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

112604 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 112604 is new and unused, you can buy 112604 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 112604.
