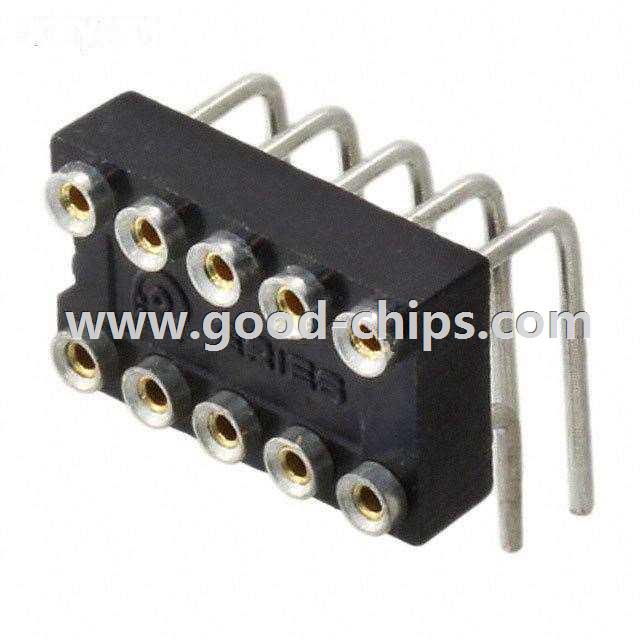

Manufacturer Part Number: | 12-823-90C |
---|---|
Manufacturer: | Aries Electronics |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9098 Pieces |
Unit Price: | Quote by Email |
Description: | CONN IC DIP SOCKET 12POS GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 12-823-90C Datasheet |
Internal Part Number | 898-12-823-90C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Vertisockets™ 800 Series | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | Aries Electronics | |
Series | Vertisockets™ 800 | |
Packaging | Bulk | |
Part Status | Active | |
Type | DIP, 0.3" (7.62mm) Row Spacing | |
Number of Positions or Pins (Grid) | 12 (2 x 6) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 30µin (0.76µm) | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Through Hole, Right Angle, Horizontal | |
Features | Closed Frame | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | 200µin (5.08µm) | |
Contact Material - Post | Brass | |
Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
Operating Temperature | -55°C ~ 105°C | |
Termination Post Length | 0.140" (3.56mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 3A | |
Contact Resistance | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 12-823-90C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
12-823-90C is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of 12-823-90C is new and unused, you can buy 12-823-90C Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 12-823-90C.
