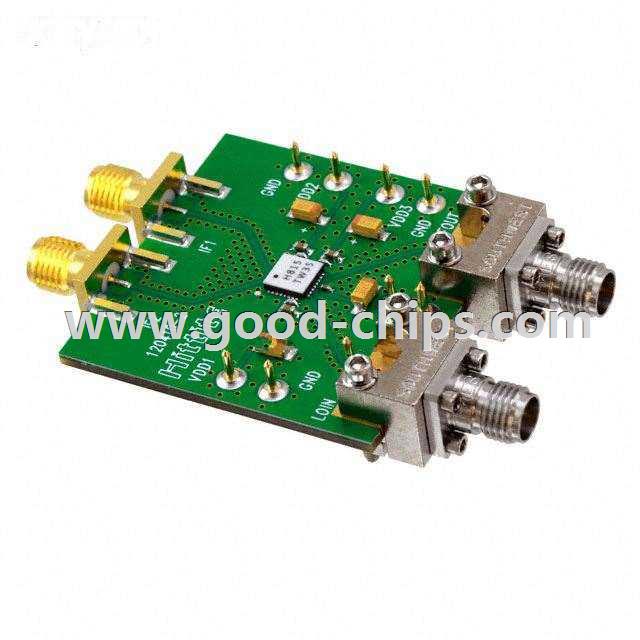

| Manufacturer Part Number: | 120412-HMC815LC5 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Evaluation and Development Kits, Boards |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | EVAL BOARD HMC815LC5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 120412-HMC815LC5 Datasheet |
| Internal Part Number | 898-120412-HMC815LC5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 23/Feb/2015 Updated Revision A 27/Jul/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Evaluation and Development Kits, Boards | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Type | Upconverter | |
| Frequency | 21GHz ~ 27GHz | |
| For Use With/Related Products | HMC815LC5 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 120412-HMC815LC5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
120412-HMC815LC5 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of 120412-HMC815LC5 is new and unused, you can buy 120412-HMC815LC5 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 120412-HMC815LC5.
