| Manufacturer Part Number: | 122390 |
|---|---|
| Manufacturer: | Amphenol-RF Division |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9298 Pieces |
| Unit Price: | Quote by Email |

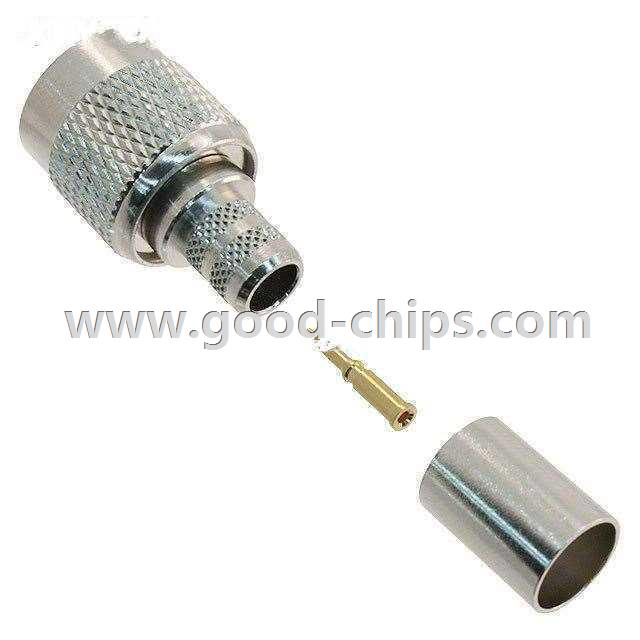

| Description: | TNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 122390 Datasheet |
| Internal Part Number | 898-122390 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | How to Crimp a BNC 3 Piece Crimp Coaxial Connector on RG-59 Cable | |
| Online Catalog | TNC | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Amphenol-RF Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | TNC | |
| Connector Type | Plug, Male Pin | |
| Contact Termination | Crimp | |
| Shield Termination | Crimp | |
| Impedance | 75 Ohm | |
| Mounting Type | Free Hanging (In-Line) | |
| Cable Group | RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 | |
| Fastening Type | Threaded | |
| Frequency - Max | 1GHz | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | Weatherproof | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polyoxymethylene (POM) Acetal | |
| Voltage Rating | 500V | |
| Operating Temperature | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 122390 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
122390 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 122390 is new and unused, you can buy 122390 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 122390.
