| Manufacturer Part Number: | 1261E504 |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

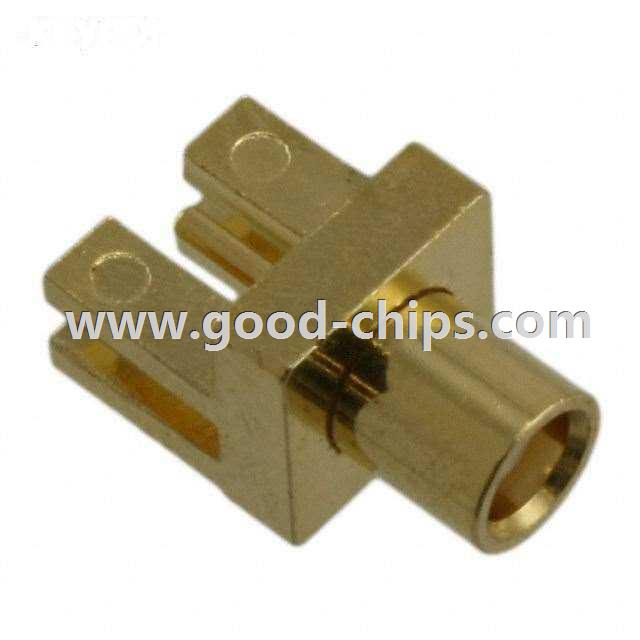

| Description: | MCX Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1261E504 Datasheet |
| Internal Part Number | 898-1261E504 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Bomar Interconnect Products - E-Snap Subminiature Edge Mount Connectors | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Winchester Electronics | |
| Series | E-Snap™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | MCX | |
| Connector Type | Jack, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Board Edge, End Launch | |
| Cable Group | - | |
| Fastening Type | Snap-On | |
| Frequency - Max | 6GHz | |
| Features | - | |
| Housing Color | Gold | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Gold | |
| Center Contact Material | - | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | 500V | |
| Operating Temperature | -40°C ~ 65°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1261E504 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1261E504 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 1261E504 is new and unused, you can buy 1261E504 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1261E504.
