Manufacturer Part Number: | 128915-HMC914LP4E |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

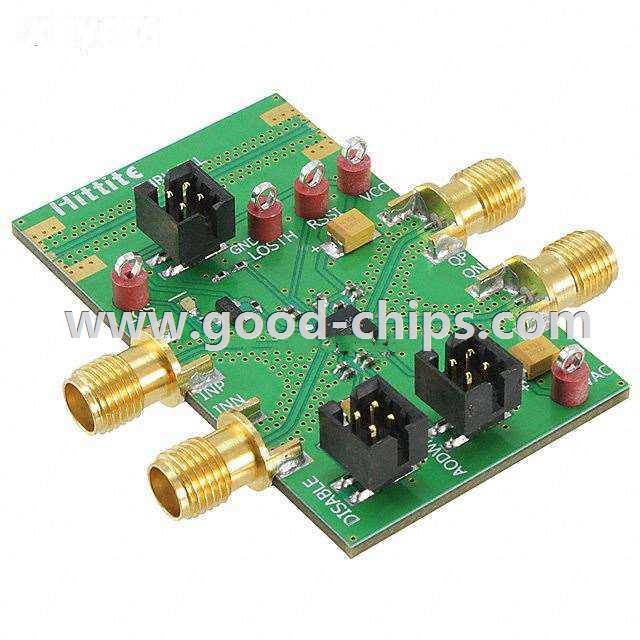

Description: | HMC914LP4E 1 - Single Channels per IC Limiting Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 128915-HMC914LP4E Datasheet |
Internal Part Number | 898-128915-HMC914LP4E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | HMC914LP4E Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Amplifier Type | Limiting | |
Output Type | Differential | |
Slew Rate | - | |
-3db Bandwidth | 9.5GHz | |
Current - Output / Channel | - | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Main IC) | 47mA | |
Voltage - Supply, Single/Dual (±) | 3 V ~ 3.6 V | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | HMC914LP4E | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 128915-HMC914LP4E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
128915-HMC914LP4E is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of 128915-HMC914LP4E is new and unused, you can buy 128915-HMC914LP4E Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 128915-HMC914LP4E.
