| Manufacturer Part Number: | 1461530050 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | RF Antennas |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

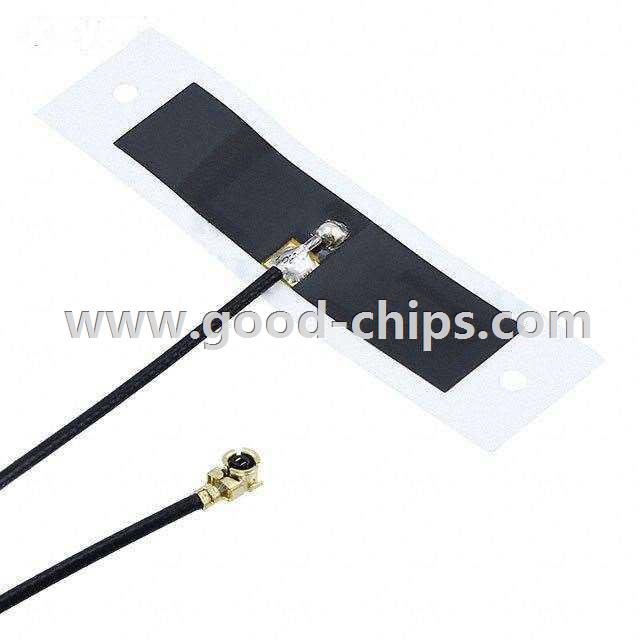

| Description: | 2.4GHz, 5.5GHz Flat Patch RF Antenna 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz 4.75dBi Connector Adhesive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1461530050 Datasheet |
| Internal Part Number | 898-1461530050 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | 146153 Series Appl Spec | |
| RoHS Information | 1461530300 Cert of Compliance | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Molex, LLC | |
| Series | 146153 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | |
| Frequency Range | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | |
| Antenna Type | Flat Patch | |
| Number of Bands | 2 | |
| VSWR | - | |
| Return Loss | -10dB | |
| Gain | 4.75dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Connector | |
| Ingress Protection | - | |
| Mounting Type | Adhesive | |
| Height (Max) | 0.004" (0.10mm) | |
| Applications | - | |
| Standard Package | 6,400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1461530050 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1461530050 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1461530050 is new and unused, you can buy 1461530050 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1461530050.
