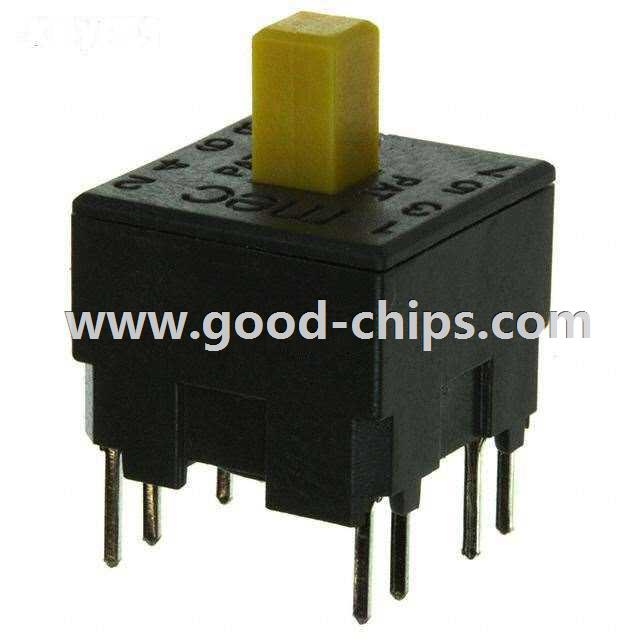

| Manufacturer Part Number: | 15500 |
|---|---|
| Manufacturer: | MEC Switches |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch 4PST (2-NO, 2-NC) Standard Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 15500 Datasheet |
| Internal Part Number | 898-15500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switches | |
| PCN Obsolescence/ EOL | Low-Temperature Switches 18/Jul/2014 | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | MEC Switches | |
| Series | Unimec™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Standard | |
| Circuit | 4PST (2-NO, 2-NC) | |
| Switch Function | On-Mom, Off-Mom | |
| Current Rating | 250mA (AC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | - | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | Yellow | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | IP54 - Dust Protected, Water Resistant | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -40°C ~ 75°C | |
| Mechanical Life | 1,500,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 15500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
15500 is in stock for immediate shipping now. We are the distributor of MEC Switches all series components. The condition of 15500 is new and unused, you can buy 15500 MEC Switches with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15500.
