| Manufacturer Part Number: | 1575-3 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

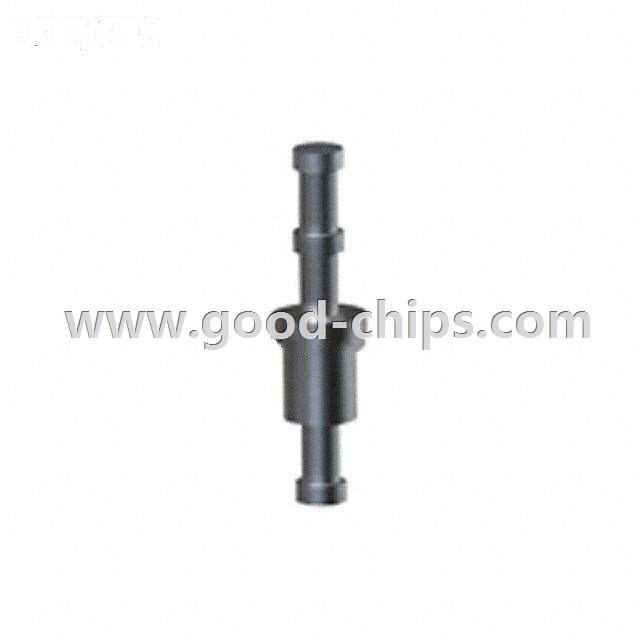

| Description: | Terminal Turret Connector Double End 0.186" (4.72mm) Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1575-3 Datasheet |
| Internal Part Number | 898-1575-3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance Statement | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Double End | |
| Number of Turrets | Single, Double | |
| Length - Above Board | 0.186" (4.72mm) | |
| Length - Below Flange | 0.195" (4.95mm) | |
| Length - Overall | 0.381" (9.68mm) | |
| Mounting Type | Through Hole | |
| Termination | Staking Flare | |
| Flange Diameter | 0.093" (2.36mm) | |
| Diameter - Turret Head | 0.050" (1.27mm) | |
| Staking Side OD | 0.072" (1.83mm) | |
| Staking Side ID | - | |
| Mounting Hole Diameter | 0.076" (1.93mm) | |
| Board Thickness | 0.093" (2.36mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1575-3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1575-3 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 1575-3 is new and unused, you can buy 1575-3 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1575-3.
