| Manufacturer Part Number: | 161V504E |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

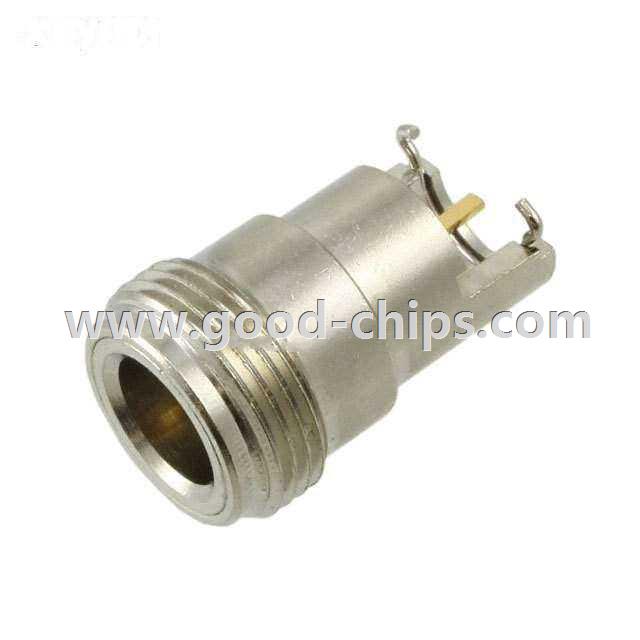

| Description: | N Type Connector Jack, Female Socket Board Edge, End Launch Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 161V504E Datasheet |
| Internal Part Number | 898-161V504E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | V-Bite Connector | |
| Featured Product | Bomar Interconnect Products - V-Bite RF Connector | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Winchester Electronics | |
| Series | V-Bite® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | N Type | |
| Connector Type | Jack, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | - | |
| Mounting Type | Board Edge, End Launch | |
| Cable Group | - | |
| Fastening Type | Threaded | |
| Frequency - Max | - | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Center Contact Material | - | |
| Center Contact Plating | Nickel | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | 1000V | |
| Operating Temperature | -55°C ~ 200°C | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 161V504E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
161V504E is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 161V504E is new and unused, you can buy 161V504E Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 161V504E.
