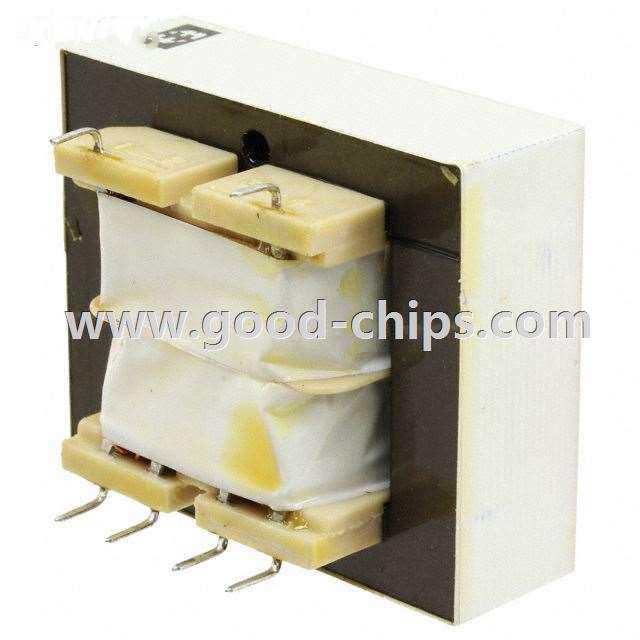

| Manufacturer Part Number: | 164H16 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | XFRMR LAMINATED 20VA THRU HOLE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 164H16 Datasheet |
| Internal Part Number | 898-164H16 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | 164 | |
| Part Status | Active | |
| Type | Laminated Core | |
| Voltage - Primary | 115V | |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V | |
| Current - Output (Max) | Parallel 2.5A, Series 1.25A | |
| Primary Winding(s) | Single | |
| Secondary Winding(s) | Dual | |
| Center Tap | No | |
| Power - Max | 20 VA | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Size / Dimension | 57.15mm L x 47.63mm W | |
| Height - Seated (Max) | 36.52mm | |
| Voltage - Isolation | 2500Vrms | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 164H16 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
164H16 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 164H16 is new and unused, you can buy 164H16 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 164H16.
