| Manufacturer Part Number: | 1746 |
|---|---|
| Manufacturer: | Adafruit Industries LLC |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9214 Pieces |
| Unit Price: | Quote by Email |

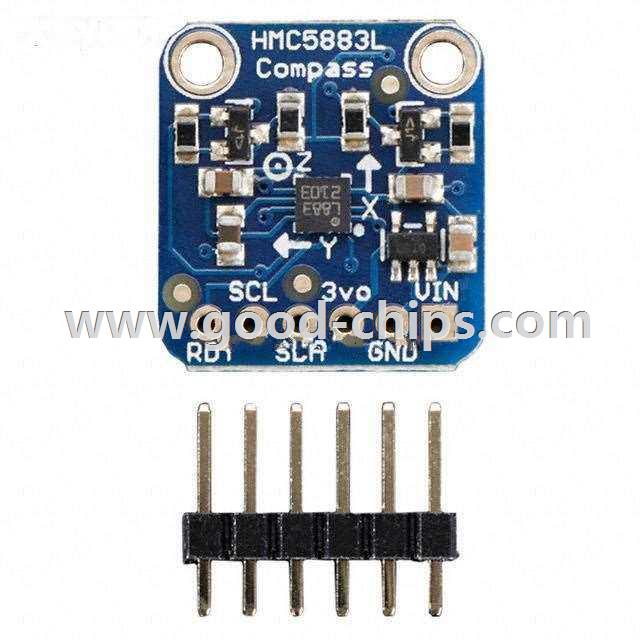

| Description: | HMC5883L - Magnetic, Digital Compass Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1746 Datasheet |
| Internal Part Number | 898-1746 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | HMC5883L Triple-Axis Magnetometer Compass Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Adafruit Industries LLC | |
| Series | - | |
| Part Status | Active | |
| Sensor Type | Magnetic, Digital Compass | |
| Sensing Range | ±8 Gauss | |
| Interface | I²C | |
| Sensitivity | - | |
| Voltage - Supply | 3.3 V ~ 5 V | |
| Embedded | - | |
| Supplied Contents | Board | |
| Utilized IC / Part | HMC5883L | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1746 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1746 is in stock for immediate shipping now. We are the distributor of Adafruit Industries LLC all series components. The condition of 1746 is new and unused, you can buy 1746 Adafruit Industries LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1746.
