Manufacturer Part Number: | 1748CF15A075E |
---|---|
Manufacturer: | Johanson Technology Inc. |
Product Category: | RF Directional Coupler |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Directional Coupler 1.71GHz ~ 1.785GHz 20 ± 1dB 3W 0805 (2012 Metric) |
Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1748CF15A075E Datasheet |
Internal Part Number | 898-1748CF15A075E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Directional Coupler | |
Manufacturer | Johanson Technology Inc. | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Obsolete | |
Coupler Type | Standard | |
Frequency | 1.71GHz ~ 1.785GHz | |
Coupling Factor | 20 ± 1dB | |
Applications | - | |
Insertion Loss | 0.5dB | |
Power - Max | 3W | |
Isolation | 25dB | |
Return Loss | 14dB | |
Package / Case | 0805 (2012 Metric) | |
Supplier Device Package | 0805 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1748CF15A075E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |

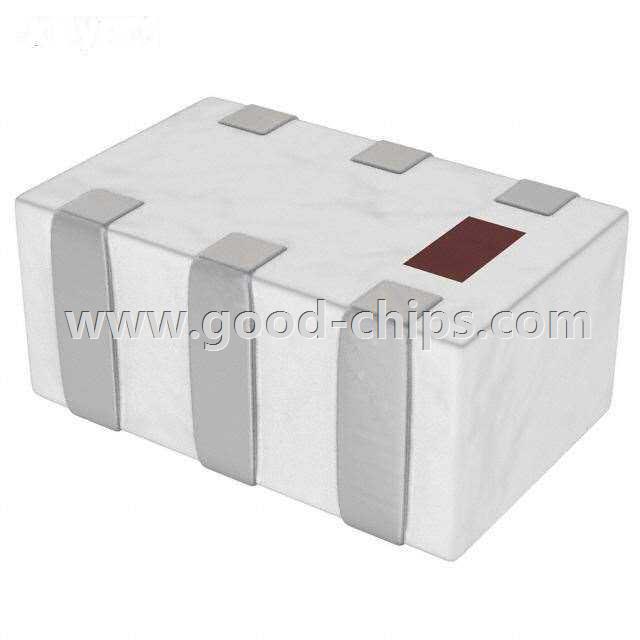

Picture / Image / Photo | Send via email |
1748CF15A075E is in stock for immediate shipping now. We are the distributor of Johanson Technology Inc. all series components. The condition of 1748CF15A075E is new and unused, you can buy 1748CF15A075E Johanson Technology Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1748CF15A075E.
