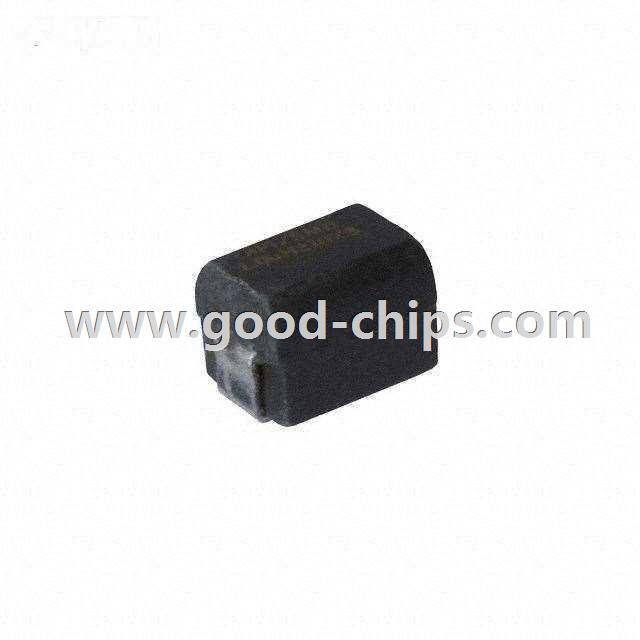

Manufacturer Part Number: | 1812R-822G |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 8.2µH Unshielded Inductor 375mA 1.4 Ohm Max 2-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1812R-822G Datasheet |
Internal Part Number | 898-1812R-822G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | 1812R | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Ferrite | |
Inductance | 8.2µH | |
Tolerance | ±2% | |
Current Rating | 375mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 1.4 Ohm Max | |
Q @ Freq | 50 @ 7.9MHz | |
Frequency - Self Resonant | 25MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 7.9MHz | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD | |
Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) | |
Height - Seated (Max) | 0.190" (4.83mm) | |
Standard Package | 650 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1812R-822G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1812R-822G is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of 1812R-822G is new and unused, you can buy 1812R-822G API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1812R-822G.
