Manufacturer Part Number: | 19003-0047 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Quick Connects, Quick Disconnect Connectors |
Available Quantity: | 9148 Pieces |
Unit Price: | Quote by Email |

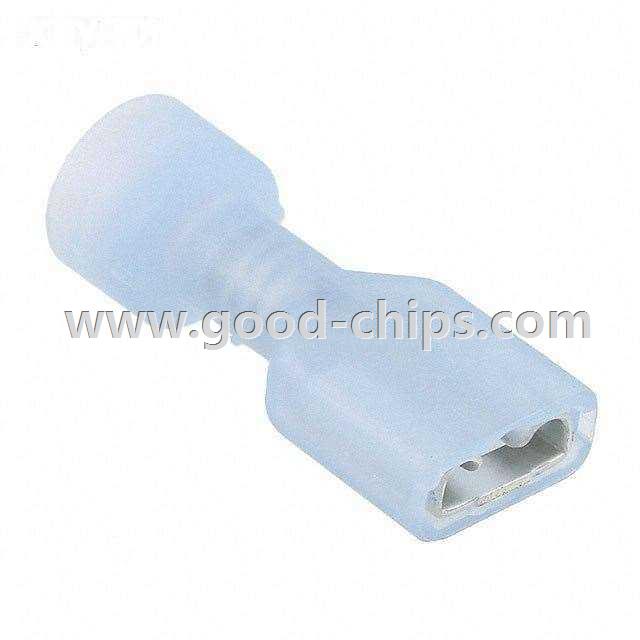

Description: | 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 19003-0047 Datasheet |
Internal Part Number | 898-19003-0047 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 19003-0047 Cert of Compliance | |
Featured Product | Solderless Terminals Interactive Guide | |
PCN Assembly/Origin | Multipe Devices Additional Tooling 29/Apr/2016 | |
Online Catalog | Insulkrimp® Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Quick Connects, Quick Disconnect Connectors | |
Manufacturer | Molex Connector Corporation | |
Series | InsulKrimp™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Standard | |
Gender | Female | |
Tab Width | 0.250" (6.35mm) | |
Tab Thickness | 0.032" (0.81mm) | |
Tab Length | - | |
Length - Overall | 0.940" (23.88mm) | |
Termination | Crimp | |
Wire Gauge | 14-16 AWG | |
Insulation | Fully Insulated | |
Mounting Type | Free Hanging (In-Line) | |
Features | Serrated Termination | |
Color | Blue | |
Contact Material | Brass | |
Contact Finish | Tin | |
Insulation Diameter | 0.260" (6.60mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 19003-0047 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
19003-0047 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19003-0047 is new and unused, you can buy 19003-0047 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19003-0047.
