Manufacturer Part Number: | 19099-0038 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Spade Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

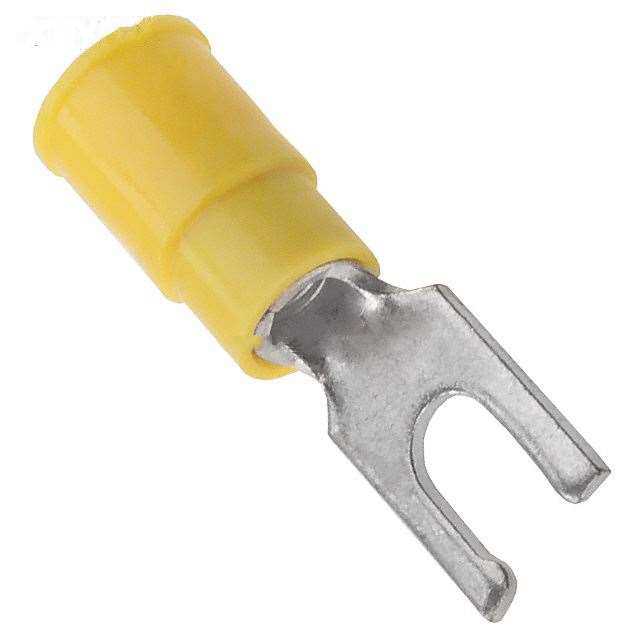

Description: | Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 19099-0038 Datasheet |
Internal Part Number | 898-19099-0038 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminals - Spade Connectors | |
Manufacturer | Molex Connector Corporation | |
Series | InsulKrimp™ | |
Packaging | Bulk | |
Part Status | Obsolete | |
Terminal Type | Spring, Snap | |
Stud/Tab Size | 8 Stud | |
Width - Outer Edges | 0.320" (8.13mm) | |
Length - Overall | 1.125" (28.58mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 10-12 AWG | |
Insulation | Insulated | |
Features | - | |
Color | Yellow | |
Contact Finish | Electro-Tin | |
Contact Material | Copper | |
Insulation Diameter | 0.250" (6.35mm) | |
Material - Insulation | Poly-Vinyl Chloride (PVC) | |
Length - Ring Center to Termination | 0.305" (7.75mm) | |
Length - Termination | 0.550" (13.97mm) | |
Tongue Inside Opening | 0.137" (3.48mm) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 19099-0038 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
19099-0038 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19099-0038 is new and unused, you can buy 19099-0038 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19099-0038.
