Manufacturer Part Number: | 19164-0066 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Ring Connectors |
Available Quantity: | 9248 Pieces |
Unit Price: | Quote by Email |

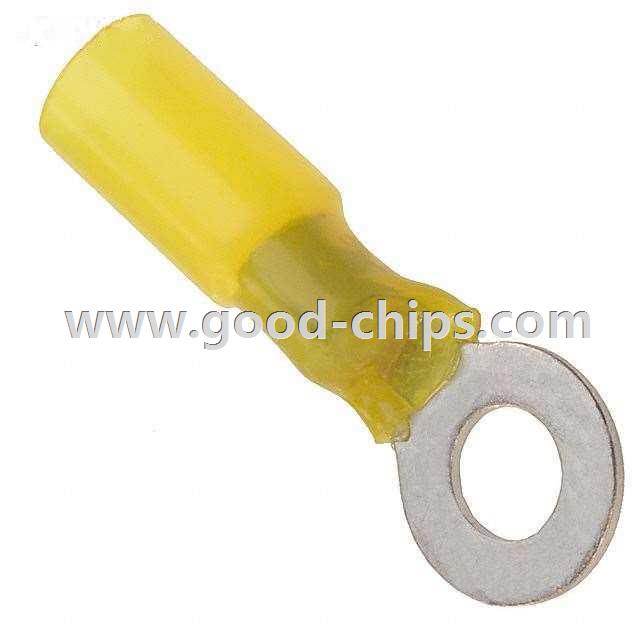

Description: | Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 19164-0066 Datasheet |
Internal Part Number | 898-19164-0066 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Perma-Seal Terminals and Splices | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 19164-0066 Cert of Compliance | |
Featured Product | Perma-Seal™ Terminals | |
Online Catalog | Perma-Seal™ Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Ring Connectors | |
Manufacturer | Molex Connector Corporation | |
Series | Perma-Seal™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Circular | |
Stud/Tab Size | 1/4 Stud | |
Thickness | 0.031" (0.79mm) | |
Width - Outer Edges | 0.540" (13.72mm) | |
Length - Overall | 1.550" (39.37mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 10-12 AWG | |
Insulation | Insulated with Heat Shrink | |
Features | Serrated Termination | |
Color | Yellow | |
Contact Material | Copper Alloy | |
Contact Finish | Tin | |
Insulation Diameter | 0.310" (7.87mm) | |
Material - Insulation | NiAc™ | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 19164-0066 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
19164-0066 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19164-0066 is new and unused, you can buy 19164-0066 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19164-0066.
