1DRED

1DRED
Manufacturer Part Number:1DRED
Manufacturer:
Product Category:Accessories - Caps
Available Quantity:30907 Pieces
Unit Price:Quote by Email

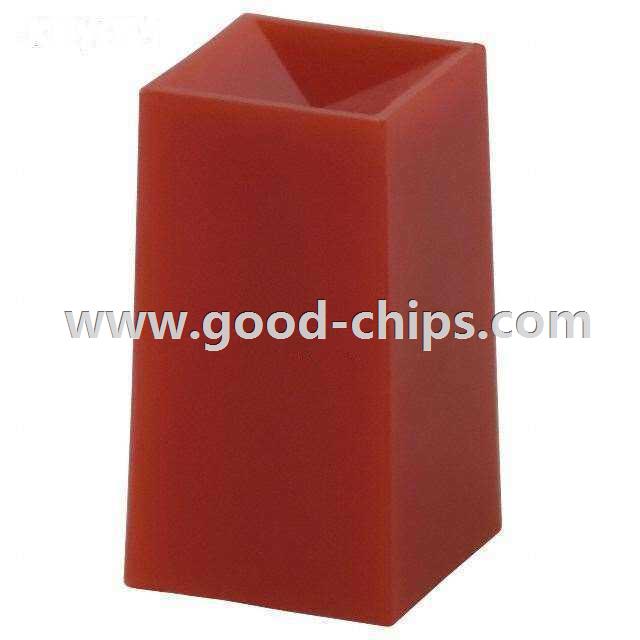

Description:Square, Concave Pushbutton Switch Cap Red Snap Fit
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1DRED Datasheet
1DRED´s Parameters
Internal Part Number898-1DRED
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesSwitch Basics
3D Model1Dyyy.stp
Online Catalog Switch Cap Accessories
CategorySwitches
FamilyAccessories - Caps
ManufacturerE-Switch
Series-
Part StatusActive
Switch TypePushbutton
ShapeSquare, Concave
ColorRed
IlluminationNon-Illuminated
For Use With/Related ProductsPBH and TL Series
Mounting TypeSnap Fit
Size4.50mm L x 4.50mm W x 9.00mm H
Features-
Standard Package 25,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part1DRED
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1DRED is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of 1DRED is new and unused, you can buy 1DRED E-Switch with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1DRED.
