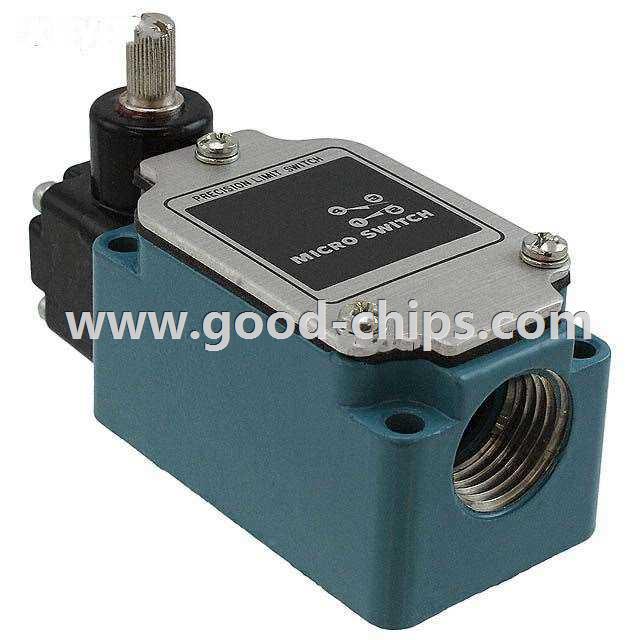

1LS197

1LS197
Manufacturer Part Number:1LS197
Manufacturer:
Product Category:Snap Action, Limit Switches
Available Quantity:9011 Pieces
Unit Price:Quote by Email
Description:SWITCH SNAP ACTION SPDT 10A 120V
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1LS197 Datasheet
1LS197´s Parameters
Internal Part Number898-1LS197
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesElectromechanical Switch Technology
Online Catalog MICRO SWITCH™ LS Series
CategorySwitches
FamilySnap Action, Limit Switches
ManufacturerHoneywell Sensing and Productivity Solutions
SeriesLS
PackagingBulk
Part StatusActive
CircuitSPDT-DB
Switch FunctionOn-Mom
Current Rating10A (AC)
Voltage Rating - AC120V
Voltage Rating - DC-
Actuator TypeSide Rotary - No Lever
Mounting TypeChassis Mount
Termination StyleScrew Terminal
Ingress ProtectionIP67 - Dust Tight, Waterproof
Features-
Operating Force, Torque27 in-oz
Release Force3 in-oz
Pretravel
Differential Travel-
Overtravel30°
Operating Position
Mechanical Life-
Electrical Life-
Operating Temperature-29°C ~ 71°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part1LS197
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1LS197 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 1LS197 is new and unused, you can buy 1LS197 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1LS197.
