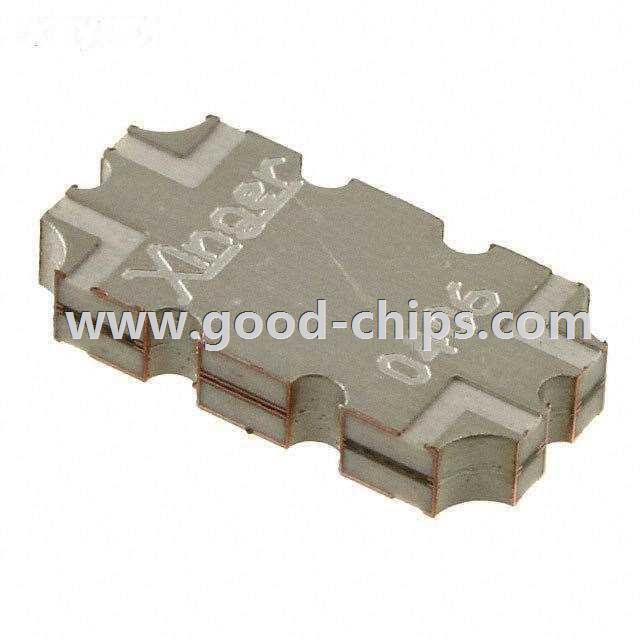

| Manufacturer Part Number: | 1M803S |
|---|---|
| Manufacturer: | Anaren |
| Product Category: | RF Directional Coupler |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Directional Coupler General Purpose 4.8GHz ~ 6GHz 20W 4-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1M803S Datasheet |
| Internal Part Number | 898-1M803S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | 1M803 | |
| Category | RF/IF and RFID | |
| Family | RF Directional Coupler | |
| Manufacturer | Anaren | |
| Series | Xinger® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Coupler Type | Standard | |
| Frequency | 4.8GHz ~ 6GHz | |
| Coupling Factor | - | |
| Applications | General Purpose | |
| Insertion Loss | 0.25dB | |
| Power - Max | 20W | |
| Isolation | 20dB | |
| Return Loss | - | |
| Package / Case | 4-SMD, No Lead | |
| Supplier Device Package | - | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1M803S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1M803S is in stock for immediate shipping now. We are the distributor of Anaren all series components. The condition of 1M803S is new and unused, you can buy 1M803S Anaren with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1M803S.
