Manufacturer Part Number: | 20020110-H071A01LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
Available Quantity: | 9480 Pieces |
Unit Price: | Quote by Email |

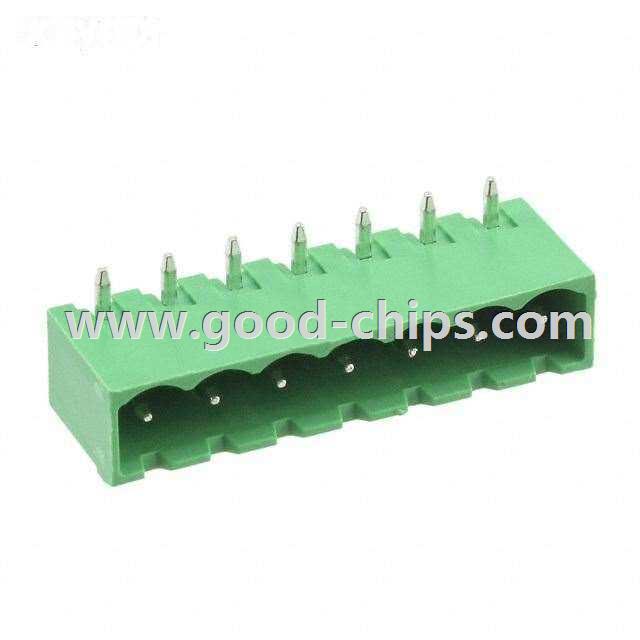

Description: | 7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 20020110-H071A01LF Datasheet |
Internal Part Number | 898-20020110-H071A01LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Terminal Blocks | |
Featured Product | Signal and Power Terminal Blocks | |
PCN Design/Specification | Multiple Series Improvement 16/Feb/2012 Multiple Devices Design 28/Apr/2014 | |
PCN Part Number | Anytek Integration 02/Apr/2015 | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Headers, Plugs and Sockets | |
Manufacturer | Amphenol FCI | |
Series | 06-508 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Header, Male Pins, Shrouded (4 Side) | |
Number of Positions | 7 | |
Positions Per Level | 7 | |
Number of Levels | 1 | |
Pitch | 0.200" (5.08mm) | |
Header Orientation | 90°, Right Angle | |
Plug Wire Entry | - | |
Termination Style | Solder | |
Mounting Type | Through Hole | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 12A | |
Voltage - UL | 300V | |
Wire Gauge or Range - AWG | - | |
Wire Gauge or Range - mm² | - | |
Color | Green | |
Operating Temperature | -40°C ~ 115°C | |
Contact Mating Finish | Tin | |
Features | - | |
Standard Package | 230 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 20020110-H071A01LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
20020110-H071A01LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 20020110-H071A01LF is new and unused, you can buy 20020110-H071A01LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20020110-H071A01LF.
