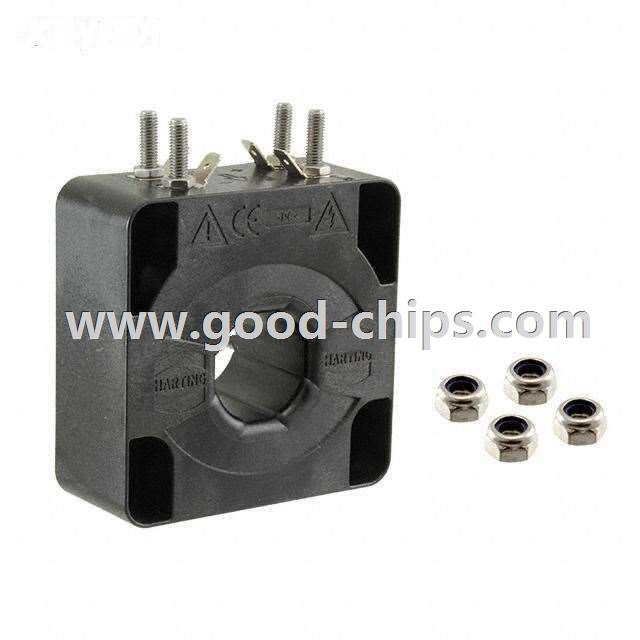

| Manufacturer Part Number: | 20310509101 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Current Transducers |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | Current Sensor 500A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 20310509101 Datasheet |
| Internal Part Number | 898-20310509101 | |
| Manufacturer Lead time | 6-8 weeks | |
| 지위 | New & Unused, Original Sealed | |
| 3D Model | 20310509101.jt 20310509101.stp | |
| Online Catalog | Hall Effect Current Sensors | |
| Category | Sensors, Transducers | |
| Family | Current Transducers | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| For Measuring | AC | |
| Sensor Type | Hall Effect, Closed Loop | |
| Current - Sensing | 500A | |
| Number of Channels | 1 | |
| Output | Ratiometric, Voltage | |
| Sensitivity | - | |
| Frequency | - | |
| Linearity | ±0.1% | |
| Accuracy | ±1% | |
| Voltage - Supply | 15 V ~ 24 V | |
| Response Time | 1µs | |
| Current - Supply (Max) | 35mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Polarization | Bidirectional | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module, Single Pass Through | |
| Standard Package | 1 | |
| 무게 | 0.001 KG | |
| 신청 | Email for details | |
| Replacement Part | 20310509101 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
20310509101 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 20310509101 is new and unused, you can buy 20310509101 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20310509101.
