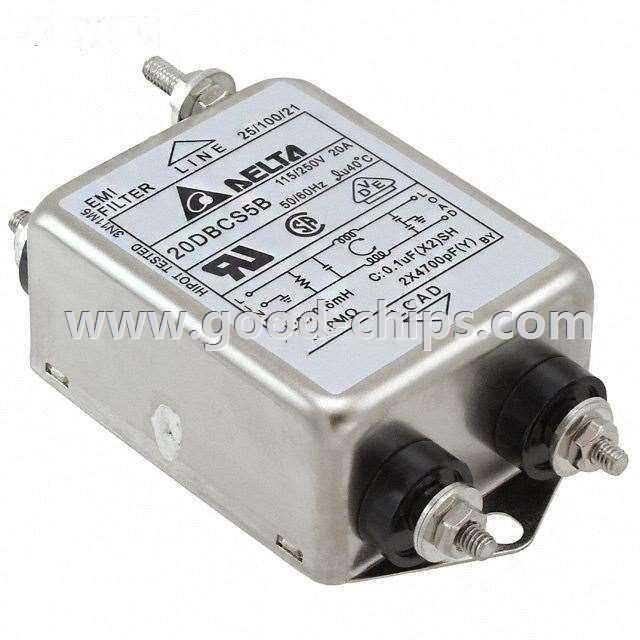

| Manufacturer Part Number: | 20DBCS5B |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | Power Line Filter Modules |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |
| Description: | GP FILTER 20A 115/250VAC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 20DBCS5B Datasheet |
| Internal Part Number | 898-20DBCS5B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Filter Products | |
| Online Catalog | DB Series | |
| Category | Filters | |
| Family | Power Line Filter Modules | |
| Manufacturer | Delta Electronics | |
| Series | DB | |
| Part Status | Active | |
| Filter Type | Single Phase | |
| Configuration | Single Stage | |
| Voltage - Rated DC | - | |
| Voltage - Rated AC | 115V, 250V | |
| Voltage - Rated AC (Phase to Ground/Neutral) | - | |
| Voltage - Rated AC (Phase to Phase) | - | |
| Current | 20A | |
| Frequency - Operating | 50/60Hz | |
| Applications | General Purpose | |
| Approvals | CSA, UR, VDE | |
| Operating Temperature | -25°C ~ 100°C | |
| Mounting Type | Chassis Mount | |
| Termination Style | Threaded Post (8-32) | |
| Inductance | 600µH | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 20DBCS5B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
20DBCS5B is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of 20DBCS5B is new and unused, you can buy 20DBCS5B Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20DBCS5B.
