| Manufacturer Part Number: | 272292 |
|---|---|
| Manufacturer: | Amphenol-RF Division |
| Product Category: | Coaxial Connectors (RF) - Adapters |
| Available Quantity: | 9054 Pieces |
| Unit Price: | Quote by Email |

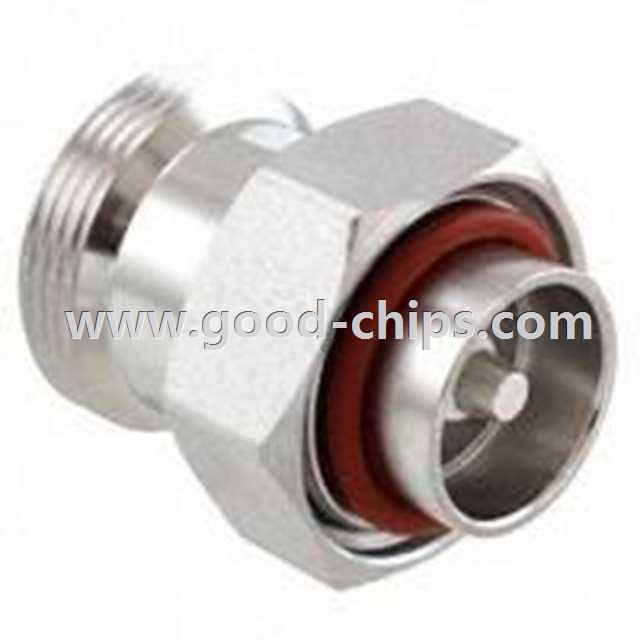

| Description: | Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 272292 Datasheet |
| Internal Part Number | 898-272292 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Low-PIM Products Overview | |
| Featured Product | Low PIM Test Adapters | |
| Online Catalog | Coaxial, RF Adapters - Amphenol-RF Division | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) - Adapters | |
| Manufacturer | Amphenol-RF Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Adapter Type | Plug to Jack | |
| Adapter Series | 7/16 DIN to 7/16 DIN | |
| Center Gender | Female to Male | |
| Convert From (Adapter End) | 7/16 Jack, Female Socket | |
| Convert To (Adapter End) | 7/16 Plug, Male Pin | |
| Conversion Type | Same Series | |
| Impedance | 50 Ohm | |
| Style | Straight | |
| Mounting Type | Free Hanging (In-Line) | |
| Frequency - Max | 6GHz | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Low PIM | |
| Body Material | Brass | |
| Body Finish | White Bronze | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Center Contact Material | Brass | |
| Center Contact Plating | Silver | |
| Mating Cycles | 500 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 272292 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
272292 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 272292 is new and unused, you can buy 272292 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 272292.
