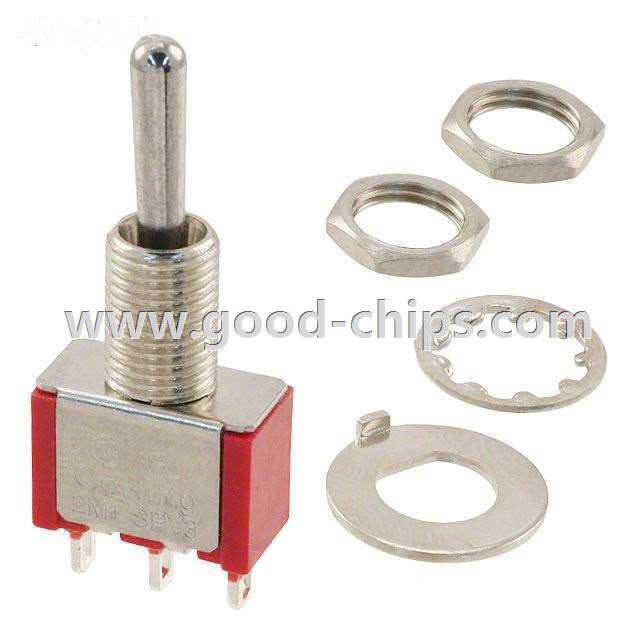

| Manufacturer Part Number: | 2M1-SP3-T1-B1-M1QE |
|---|---|
| Manufacturer: | Carling Technologies |
| Product Category: | Toggle Switches |
| Available Quantity: | 10005 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2M1-SP3-T1-B1-M1QE Datasheet |
| Internal Part Number | 898-2M1-SP3-T1-B1-M1QE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 2M Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Carling Technologies | |
| Series | 2M | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Off-On | |
| Current Rating | 5A (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Standard Round | |
| Actuator Length | 10.40mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | |
| Bushing Thread | 1/4-40 | |
| Ingress Protection | - | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Brass, Chrome Plated | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2M1-SP3-T1-B1-M1QE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2M1-SP3-T1-B1-M1QE is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of 2M1-SP3-T1-B1-M1QE is new and unused, you can buy 2M1-SP3-T1-B1-M1QE Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2M1-SP3-T1-B1-M1QE.
