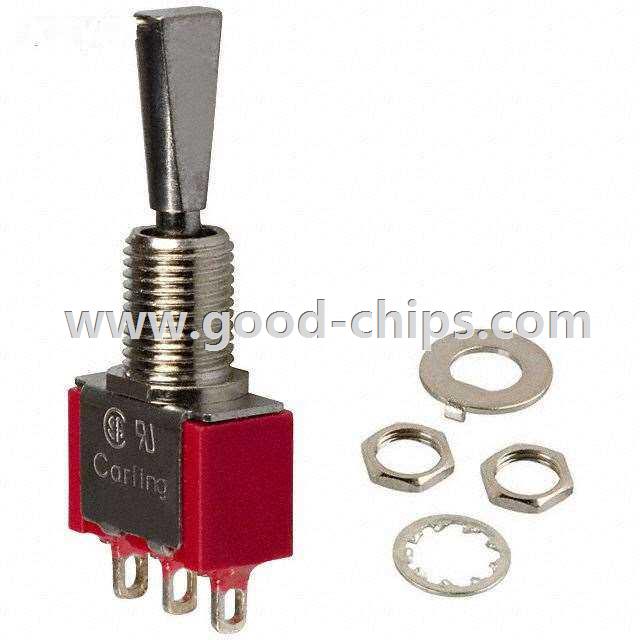

Manufacturer Part Number: | 2M1-SP3-T6-B1-M1QE |
---|---|
Manufacturer: | Carling Technologies |
Product Category: | Toggle Switches |
Available Quantity: | 9315 Pieces |
Unit Price: | Quote by Email |
Description: | Toggle Switch SPDT Panel Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2M1-SP3-T6-B1-M1QE Datasheet |
Internal Part Number | 898-2M1-SP3-T6-B1-M1QE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 2M Series | |
Category | Switches | |
Family | Toggle Switches | |
Manufacturer | Carling Technologies | |
Series | 2M | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT | |
Switch Function | On-Off-On | |
Current Rating | 5A (AC/DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 28V | |
Actuator Type | Flatted | |
Actuator Length | 12.10mm | |
Illumination | Non-Illuminated | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Panel Cutout Dimensions | Circular - 6.35mm Dia | |
Bushing Thread | 1/4-40 | |
Ingress Protection | - | |
Features | Epoxy Sealed Terminals | |
Actuator Material | Brass, Chrome Plated | |
Electrical Life | 50,000 Cycles | |
Operating Temperature | -30°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2M1-SP3-T6-B1-M1QE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2M1-SP3-T6-B1-M1QE is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of 2M1-SP3-T6-B1-M1QE is new and unused, you can buy 2M1-SP3-T6-B1-M1QE Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2M1-SP3-T6-B1-M1QE.
